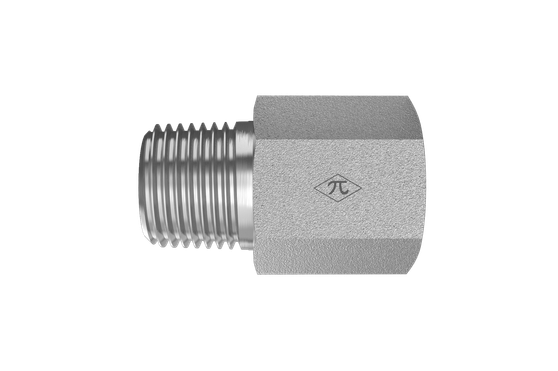

6404-24-24-SS

1-7/8-12 Female ORB x 1-1/2" Male NPTF 30°

6404-24-24-SS is a 1-7/8-12 Female ORB x 1-1/2" Male NPTF 30° in the 6404 Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Stainless Steel
  • Male Adapter
  • None
$781.68
(0) Write a Review
SKU:
6404-24-24-SS

Product Details

Connection A
TypeFemale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection B
TypeMale NPTF 30°
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.95 lb
ShapeMale Adapter
PlatingNone
Cross References
Aeroquip259-2246-24-24
Parker1 1/2-24 FHG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
