6404-32-32-SS

2-1/2-12 Female ORB × 2" Male NPTF · Straight Male Adapter

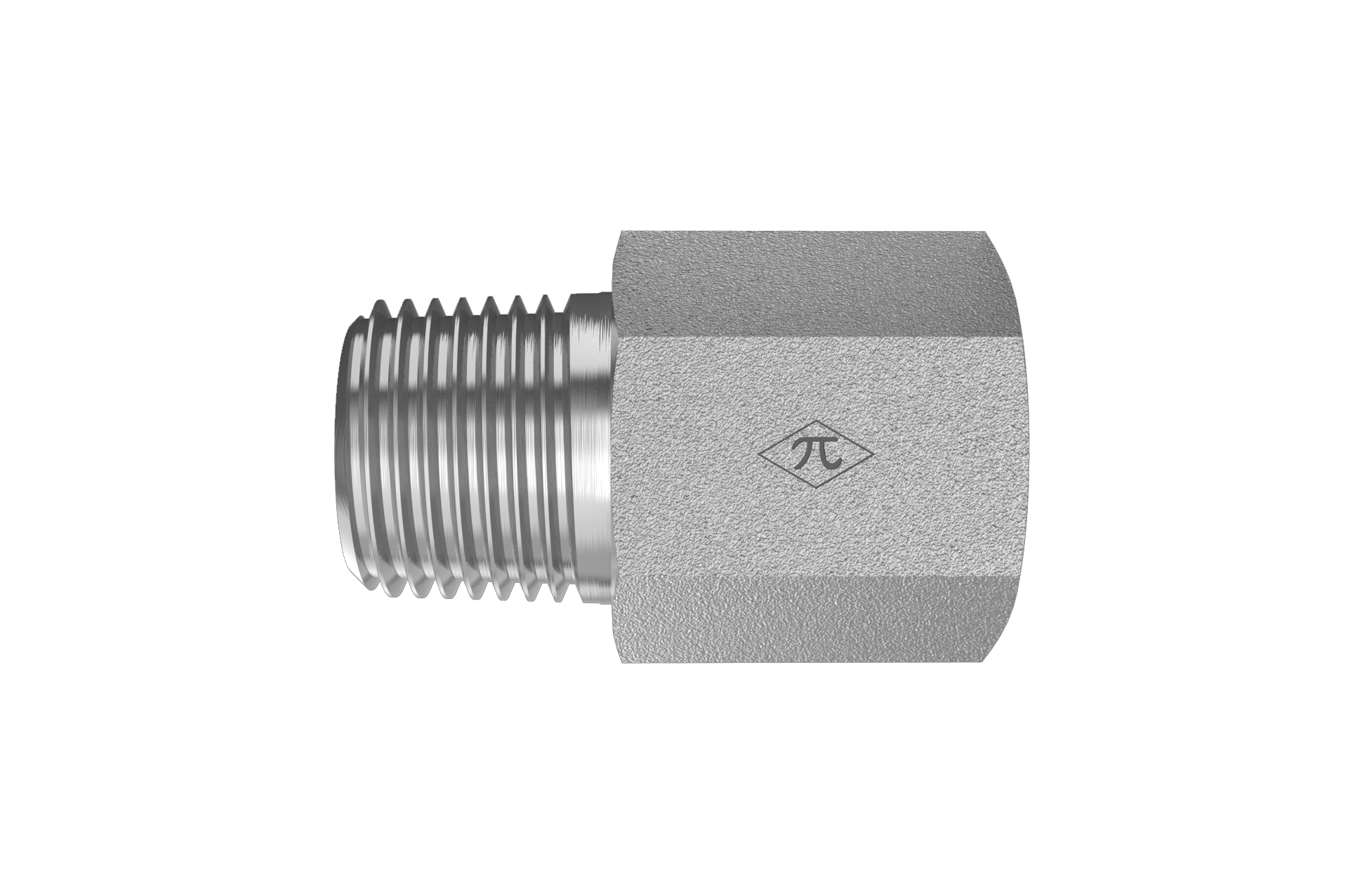

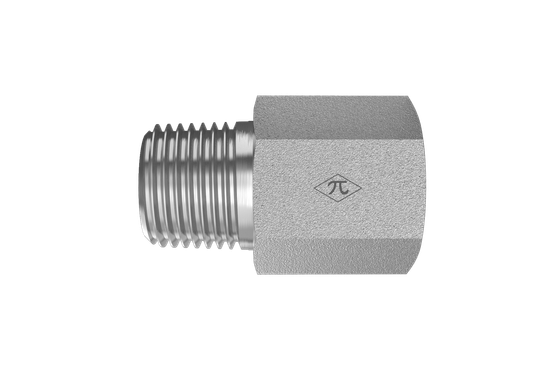

The HGW 6404-32-32-SS is a straight male adapter joining 2-1/2-12 female ORB to 2" male NPTF. Made from stainless steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Male Adapter
$801.68
(0) Write a Review
SKU:
6404-32-32-SS

Product Details

Connection A
TypeFemale ORB
Port Size2-1/2-12
StandardSAE J1926
Thread Type2-1/2-12 UN
Size2-1/2-12
Connection B
TypeMale NPTF
Pipe Size2"
StandardSAE J476
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1.33 lb
ShapeMale Adapter
Cross References
Aeroquip259-2246-32-32
Parker2-32 FHG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
