6404-32-32

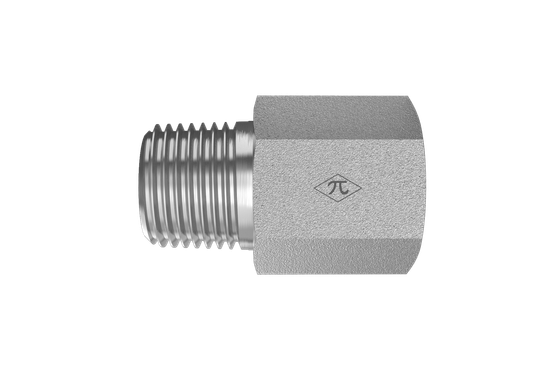

2-1/2-12 Female ORB × 2" Male NPTF · Straight Male Adapter

The HGW 6404-32-32 is a straight male adapter joining 2-1/2-12 female ORB to 2" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$272.12
(0) Write a Review
SKU:
6404-32-32

Product Details

Connection A
TypeFemale ORB
Port Size2-1/2-12
StandardSAE J1926
Thread Type2-1/2-12 UN
Size2-1/2-12
Connection B
TypeMale NPTF
Pipe Size2"
StandardSAE J476
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.30 lb
ShapeMale Adapter
Cross References
Aeroquip2246-32-32S
Parker2-32 FHG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
