6405-02-02-O

5/16-24 Male ORB × 1/8" Female NPTF · Female Adapter

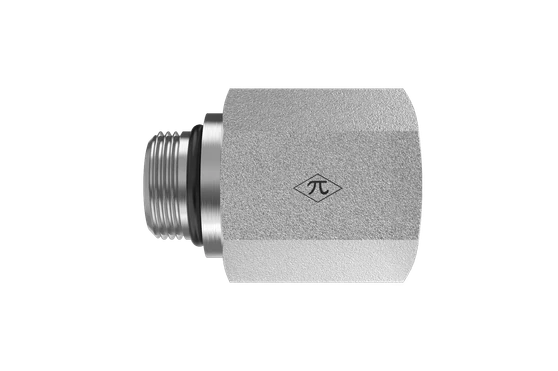

The HGW 6405-02-02-O is a female adapter joining 5/16-24 male ORB to 1/8" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$7.02
(0) Write a Review
SKU:
6405-02-02-O

Product Details

Connection A
TypeMale ORB
Port Size5/16-24
StandardSAE J1926
Thread Type5/16-24 UNF
Size5/16-24
Connection B
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type5/16-24 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.04 lb
ShapeFemale Adapter
Cross References
Aeroquip2216-2-2S
Parker2-1/8 F5OG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
