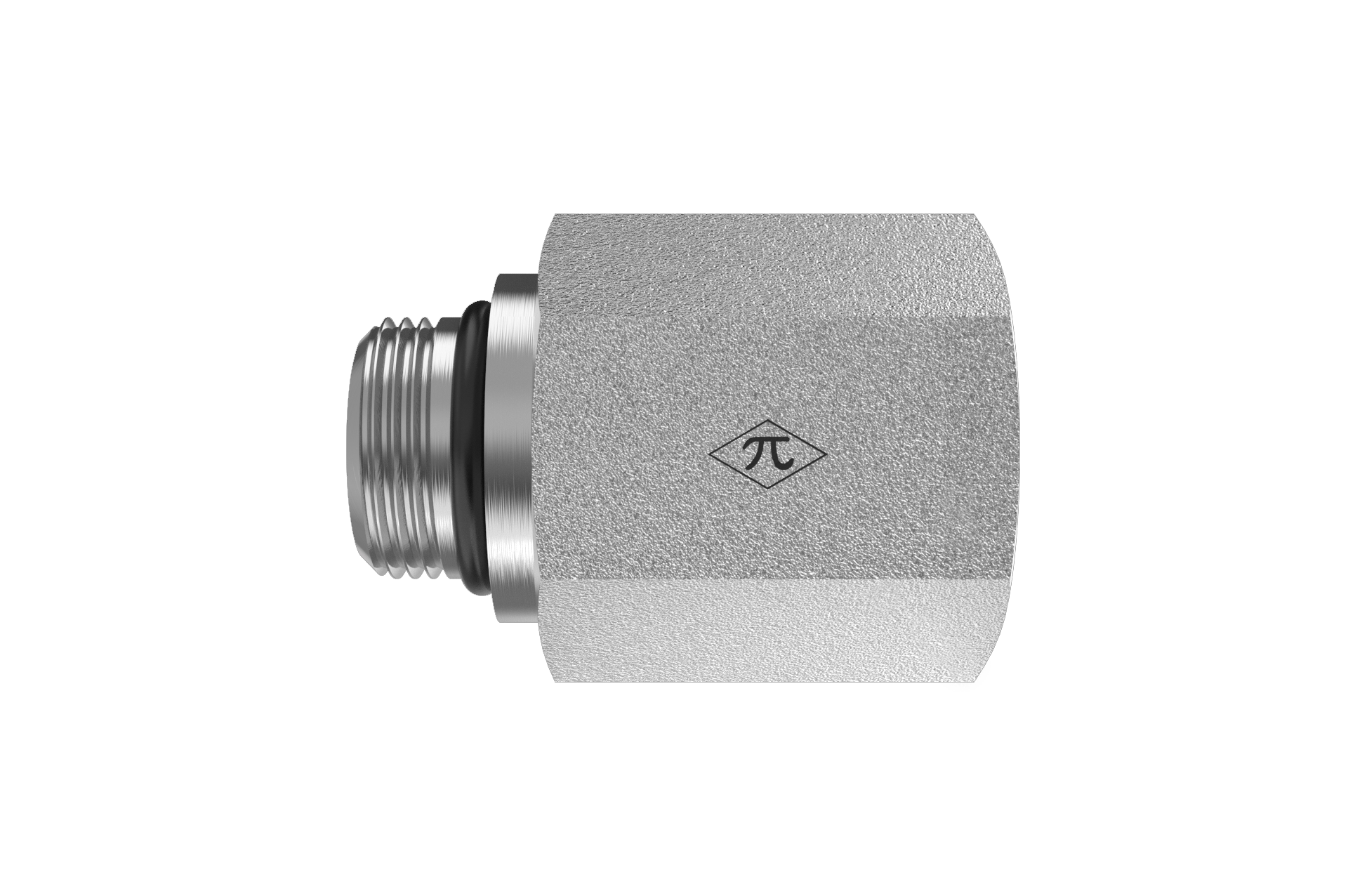

6405-03-04-O-SS

3/8-24 Male ORB x 1/4" Female NPTF

6405-03-04-O-SS is a 3/8-24 Male ORB x 1/4" Female NPTF in the 6405-O Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Stainless Steel
  • Female Adapter
  • None
$253.91
(0) Write a Review
SKU:
6405-03-04-O-SS

Product Details

Connection A
TypeMale ORB
Port Size3/8-24
StandardSAE J1926
Thread Type3/8-24 UNF
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type3/8-24 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.10 lb
ShapeFemale Adapter
PlatingNone
Cross References
Aeroquip259-2216-4-3
Parker3-1/4 F5OG-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
