6405-04-04-O

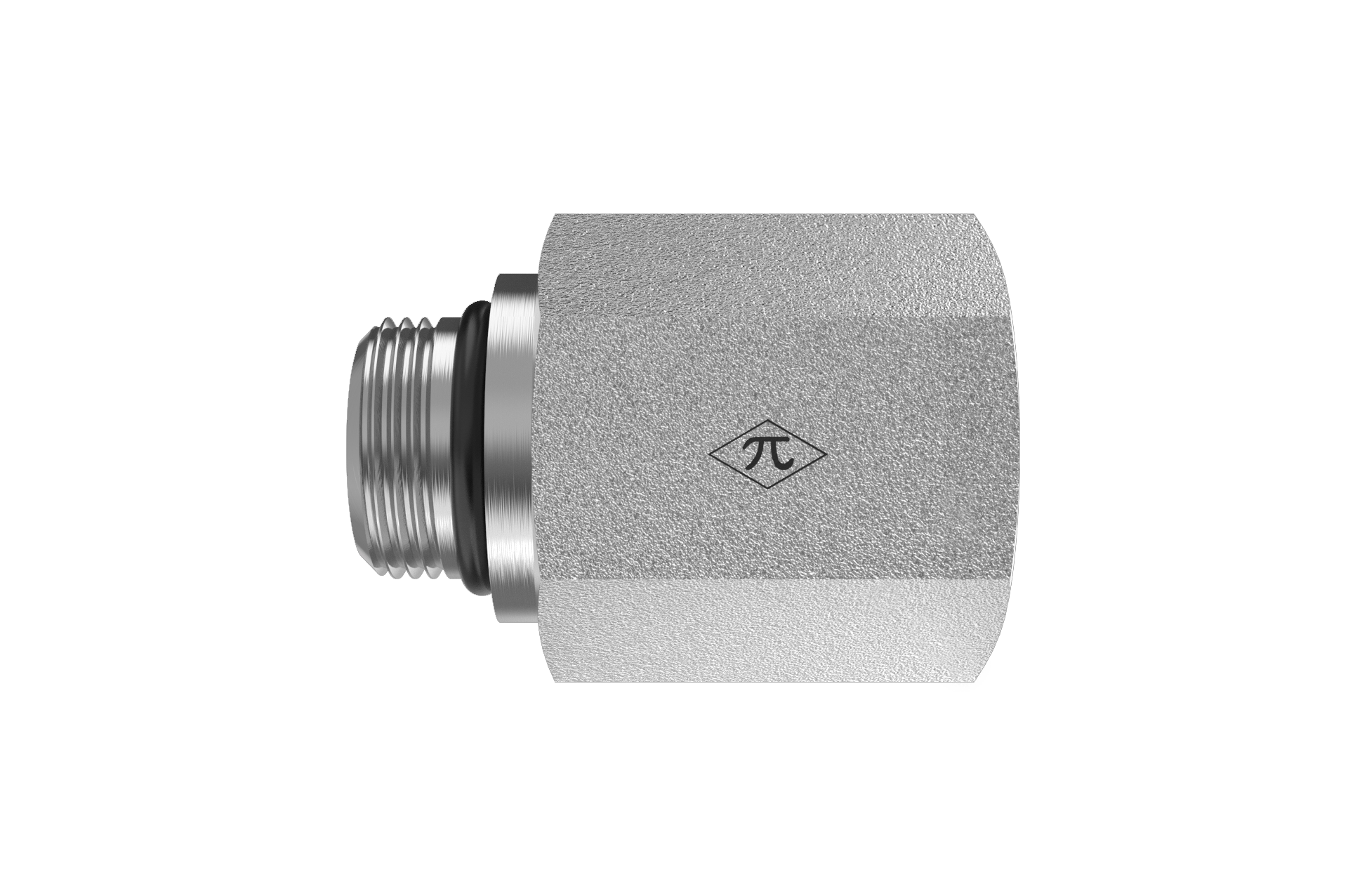

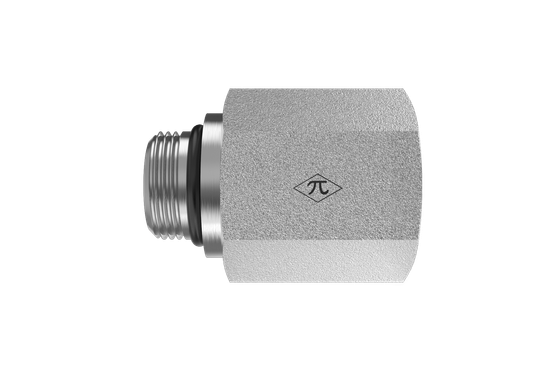

7/16-20 Male ORB × 1/4" Female NPTF · Female Adapter

The HGW 6405-04-04-O is a female adapter joining 7/16-20 male ORB to 1/4" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$2.51
(0) Write a Review
SKU:
6405-04-04-O

Product Details

Connection A
TypeMale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.08 lb
ShapeFemale Adapter
Cross References
Aeroquip2216-4-4S
Parker4-1/4 F5OG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
