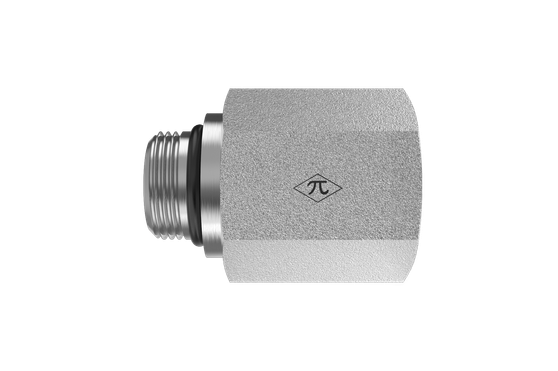

6405-05-02-O-SS

1/2-20 Male ORB × 1/8" Female NPTF · Female Adapter

The HGW 6405-05-02-O-SS is a female adapter joining 1/2-20 male ORB to 1/8" female NPTF. Made from stainless steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Female Adapter
$134.08
(0) Write a Review
SKU:
6405-05-02-O-SS

Product Details

Connection A
TypeMale ORB
Port Size1/2-20
StandardSAE J1926
Thread Type1/2-20 UNF
Size1/2-20
Connection B
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.09 lb
ShapeFemale Adapter
Cross References
Aeroquip259-2216-2-5
Parker5-1/8 F5OG-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
