6405-05-06-O

1/2-20 Male ORB × 3/8" Female NPTF · Female Adapter

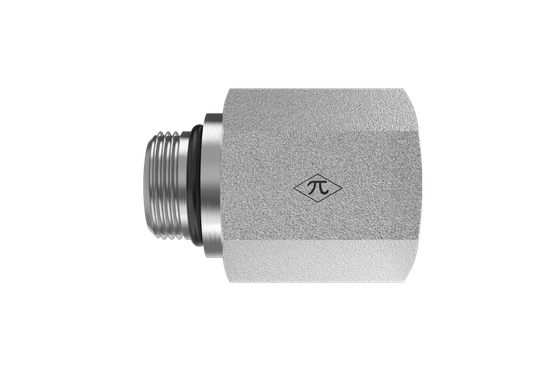

The HGW 6405-05-06-O is a female adapter joining 1/2-20 male ORB to 3/8" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$18.67
(0) Write a Review
SKU:
6405-05-06-O

Product Details

Connection A
TypeMale ORB
Port Size1/2-20
StandardSAE J1926
Thread Type1/2-20 UNF
Size1/2-20
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.13 lb
ShapeFemale Adapter
Cross References
Aeroquip2216-6-5S
Parker5-3/8 F5OG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
