6405-06-04

9/16-18 Male ORB × 1/4" Female NPTF · Female Adapter

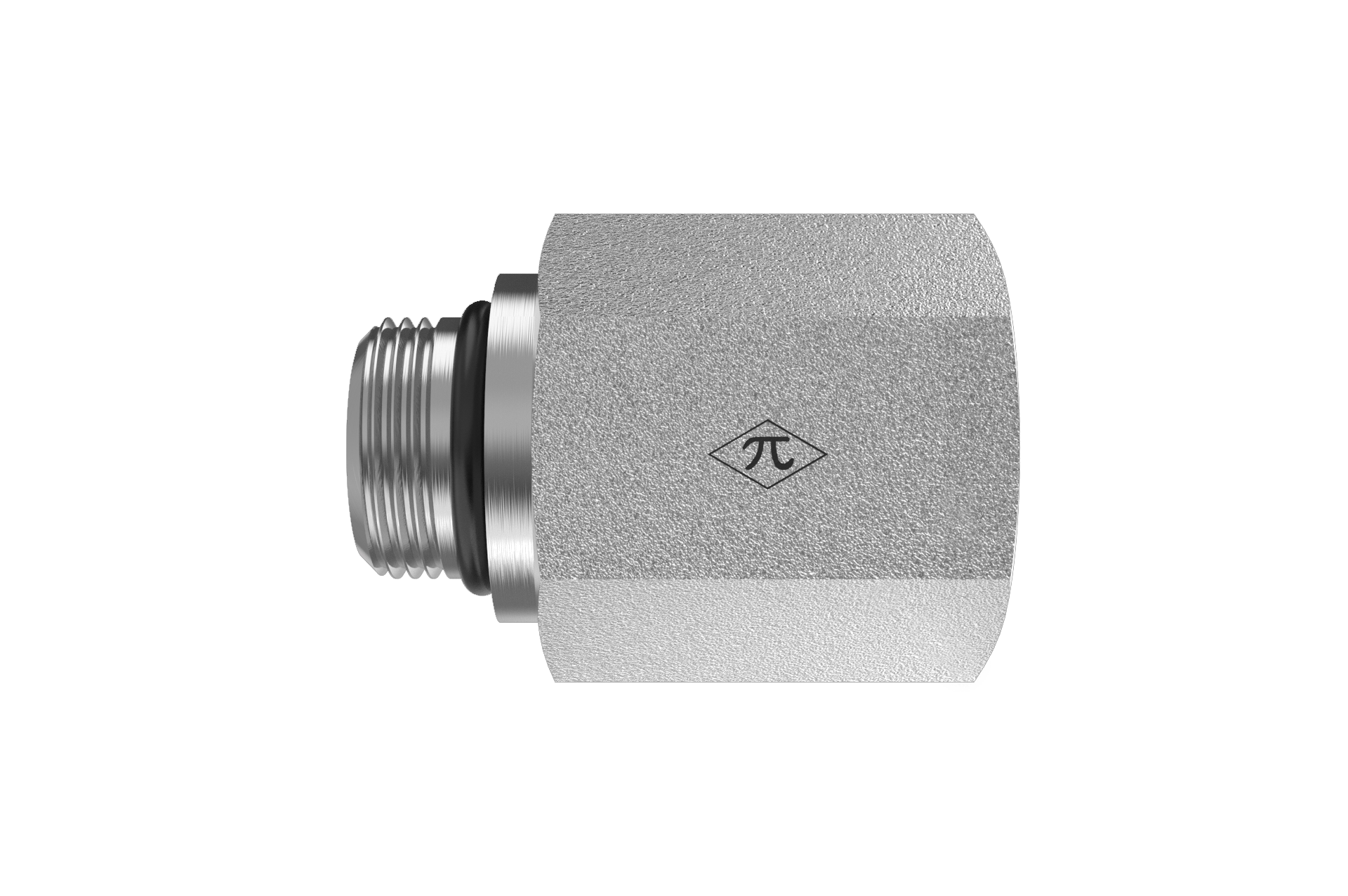

The HGW 6405-06-04 is a female adapter joining 9/16-18 male ORB to 1/4" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$1.44
(0) Write a Review
SKU:
6405-06-04

Product Details

Connection A
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.09 lb
ShapeFemale Adapter
Cross References
Aeroquip2216-1-4-6S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
