6405-06-08-O-VITON

9/16-18 Male ORB × 1/2" Female NPTF · Female Adapter

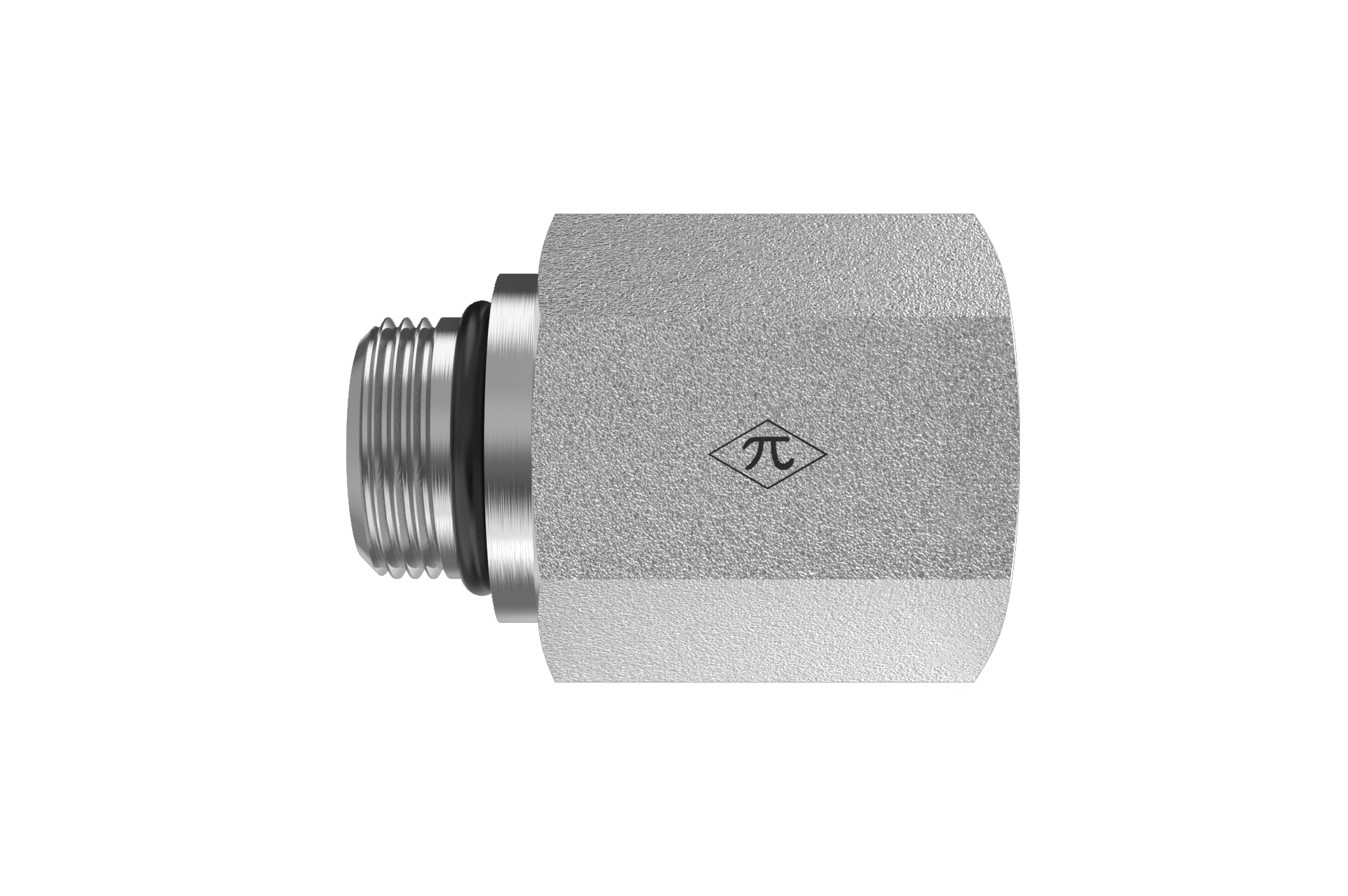

The HGW 6405-06-08-O-VITON is a female adapter joining 9/16-18 male ORB to 1/2" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$29.30
(0) Write a Review
SKU:
6405-06-08-O-VITON

Product Details

Connection A
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection B
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.25 lb
ShapeFemale Adapter
Cross References
Aeroquip213-2216-8-6
Parker6-1/2 F5OG-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
