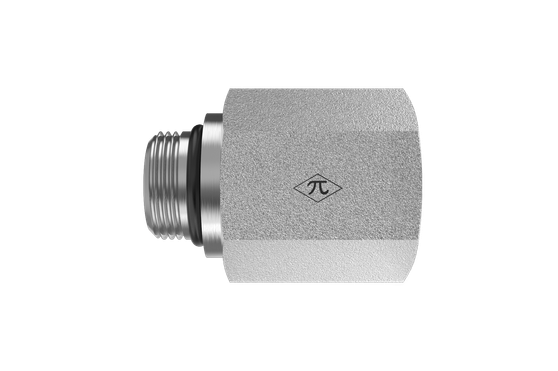

6405-08-06-O

3/4-16 Male ORB × 3/8" Female NPTF · Female Adapter

The HGW 6405-08-06-O is a female adapter joining 3/4-16 male ORB to 3/8" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$2.05
(0) Write a Review
SKU:
6405-08-06-O

Product Details

Connection A
TypeMale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Size3/4-16
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.13 lb
ShapeFemale Adapter
Cross References
Aeroquip2216-6-8S
Parker8-3/8 F5OG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
