6405-10-06-O-VITON

7/8-14 Male ORB × 3/8" Female NPTF · Female Adapter

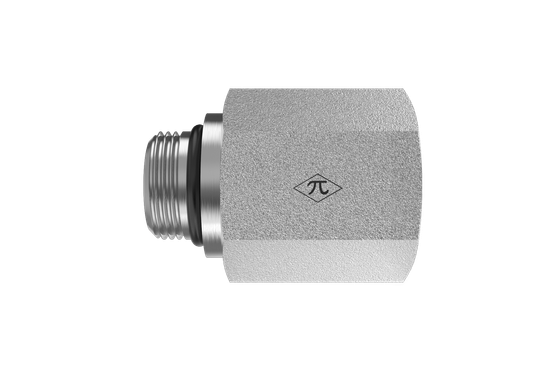

The HGW 6405-10-06-O-VITON is a female adapter joining 7/8-14 male ORB to 3/8" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$14.33
(0) Write a Review
SKU:
6405-10-06-O-VITON

Product Details

Connection A
TypeMale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.30 lb
ShapeFemale Adapter
Cross References
Aeroquip213-2216-6-10
Parker10-3/8 F5OG-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
