6405-10-08-O-SS

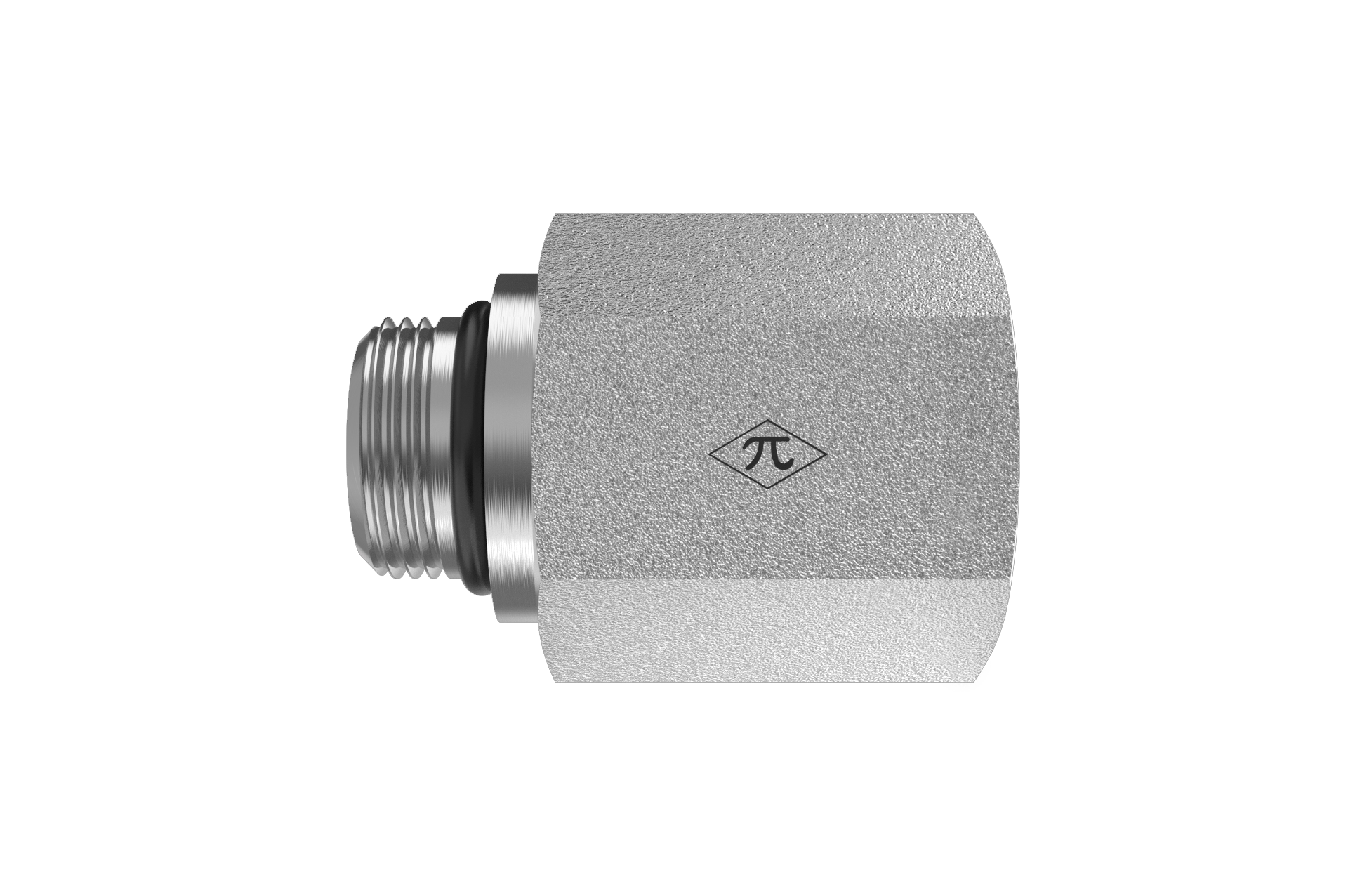

7/8-14 Male ORB x 1/2" Female NPTF

6405-10-08-O-SS is a 7/8-14 Male ORB x 1/2" Female NPTF in the 6405-O Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Stainless Steel
  • Female Adapter
  • None
$88.85
(0) Write a Review
SKU:
6405-10-08-O-SS

Product Details

Connection A
TypeMale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Connection B
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.26 lb
ShapeFemale Adapter
PlatingNone
Cross References
Aeroquip259-2216-8-10
Parker10-1/2 F5OG-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
