6405-16-02-O

1-5/16-12 Male ORB × 1/8" Female NPTF · Female Adapter

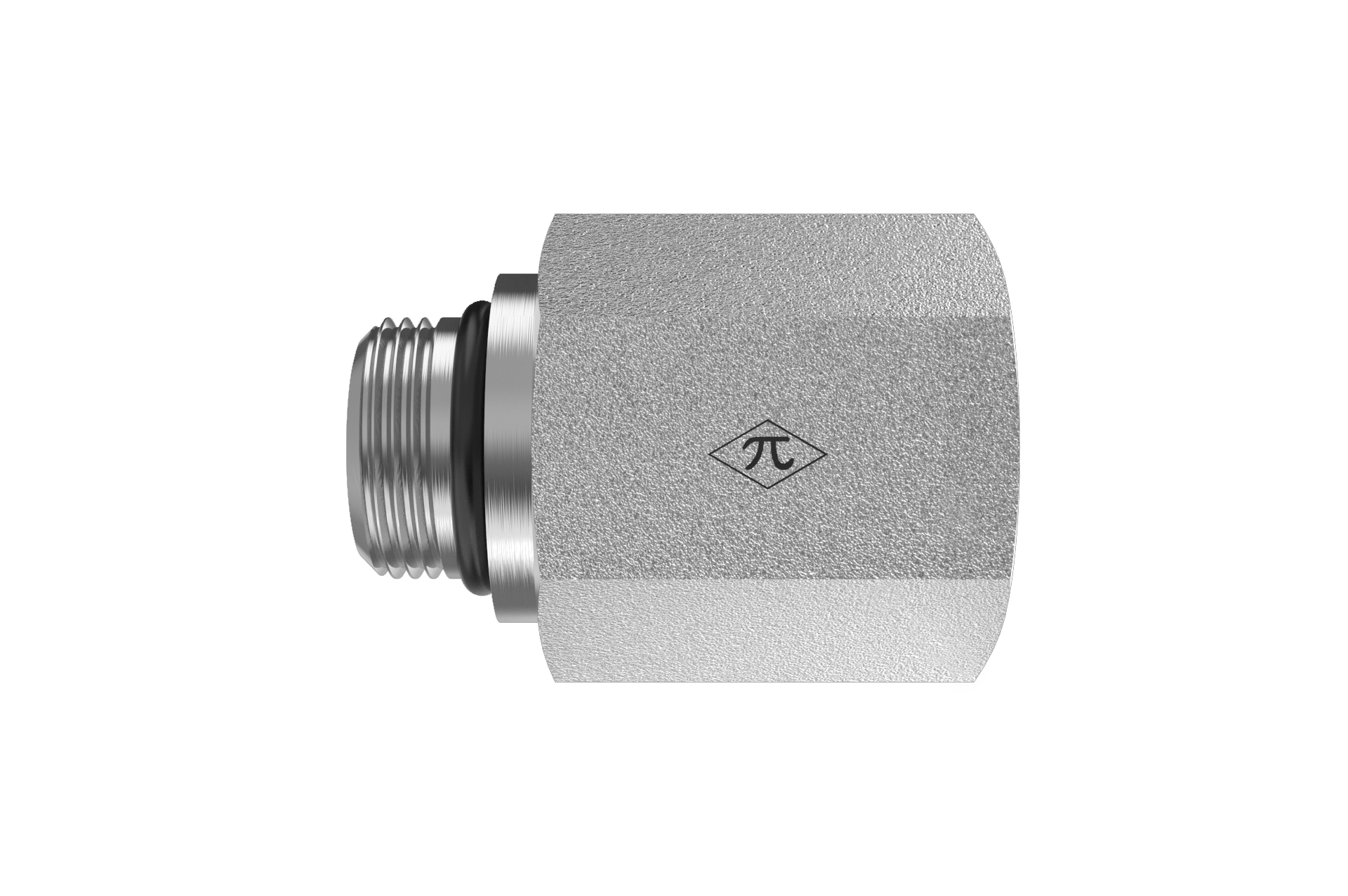

The HGW 6405-16-02-O is a female adapter joining 1-5/16-12 male ORB to 1/8" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$65.36
(0) Write a Review
SKU:
6405-16-02-O

Product Details

Connection A
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Size1-5/16-12
Connection B
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.49 lb
ShapeFemale Adapter
Cross References
Aeroquip2216-2-16S
Parker16-1/8 F5OG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
