6405-16-08-O-SS

1-5/16-12 Male ORB × 1/2" Female NPTF · Female Adapter

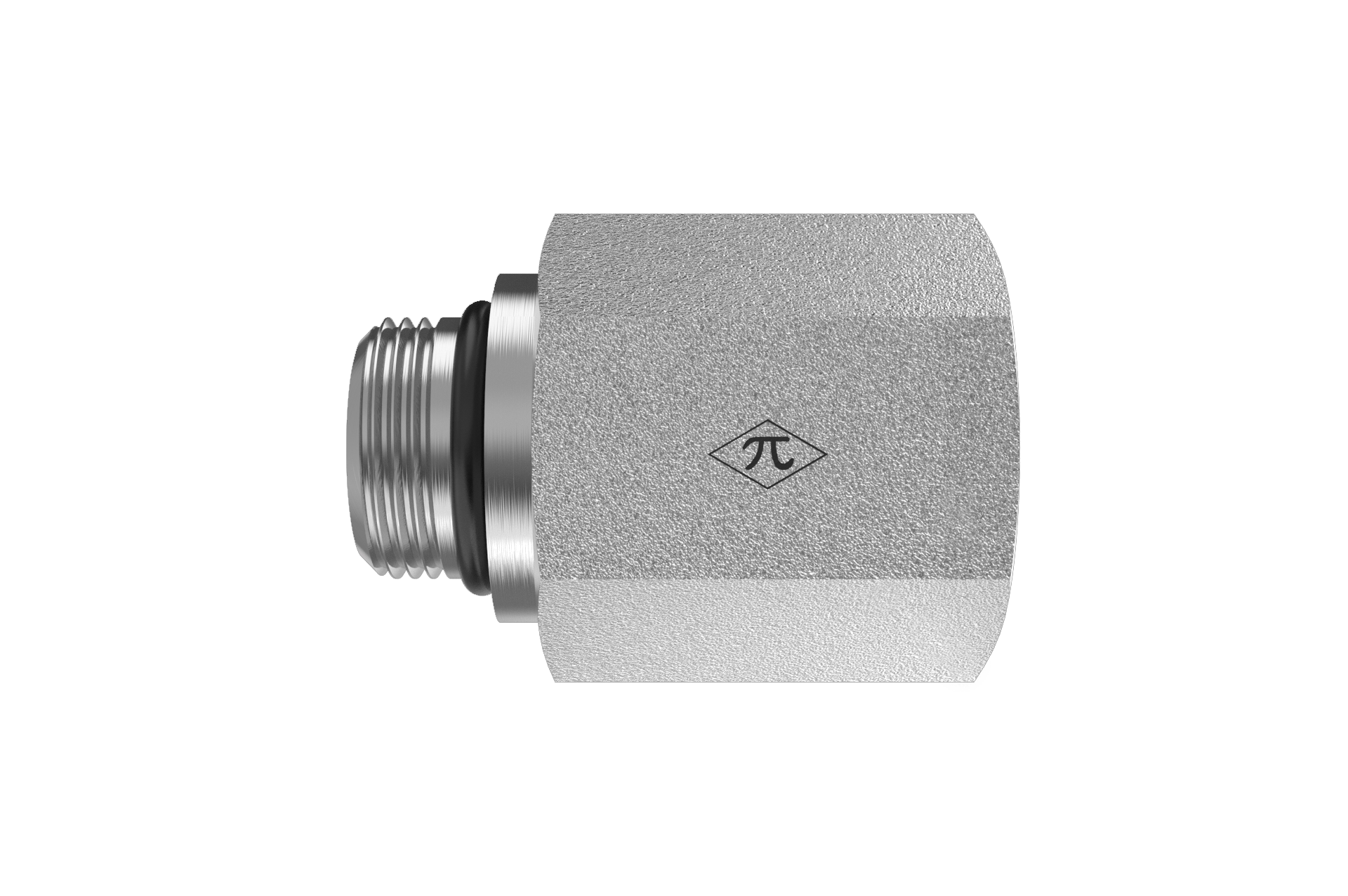

The HGW 6405-16-08-O-SS is a female adapter joining 1-5/16-12 male ORB to 1/2" female NPTF. Made from stainless steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Female Adapter
$95.96
(0) Write a Review
SKU:
6405-16-08-O-SS

Product Details

Connection A
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Size1-5/16-12
Connection B
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.60 lb
ShapeFemale Adapter
Cross References
Aeroquip259-2216-8-16
Parker16-1/2 F5OG-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
