6405-16-16-O-VITON

1-5/16-12 Male ORB x 1" Female NPTF

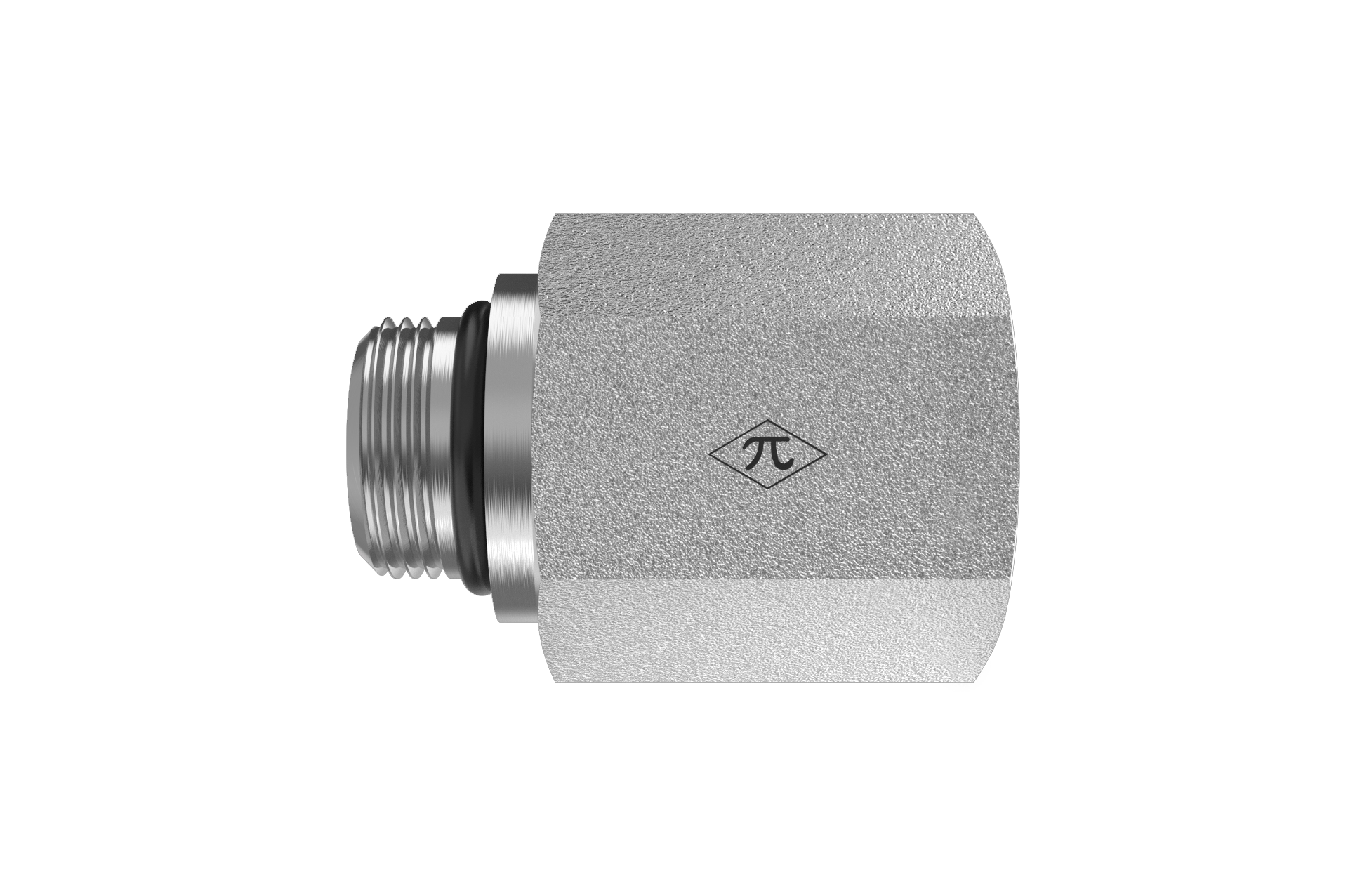

6405-16-16-O-VITON is a 1-5/16-12 Male ORB x 1" Female NPTF in the 6405-O Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$24.36
(0) Write a Review
SKU:
6405-16-16-O-VITON

Product Details

Connection A
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection B
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.52 lb
ShapeFemale Adapter
Cross References
Aeroquip213-2216-16-16
Parker16-1 F5OG-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
