6405-24-12-O

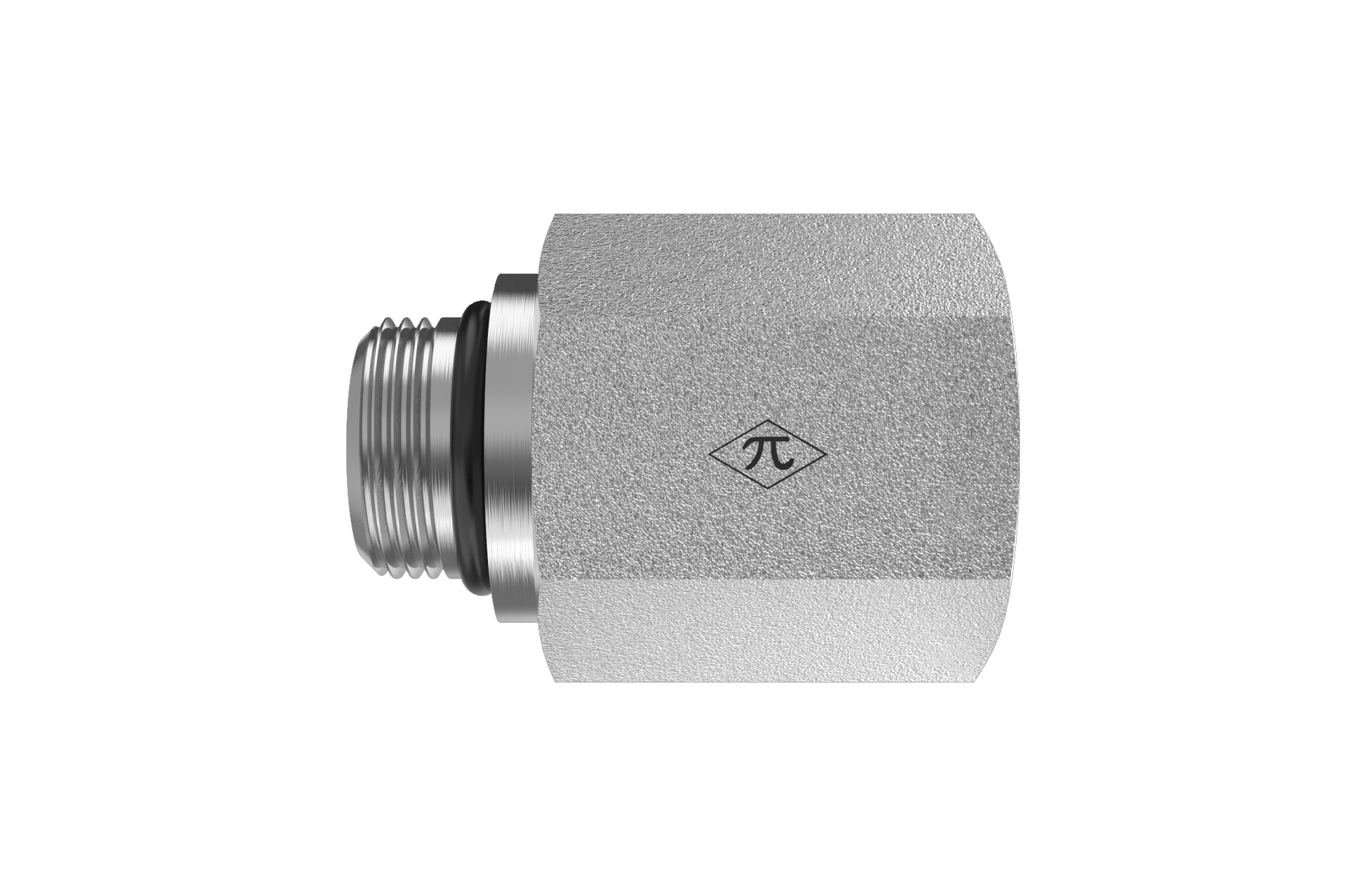

1-7/8-12 Male ORB × 3/4" Female NPTF · Female Adapter

The HGW 6405-24-12-O is a female adapter joining 1-7/8-12 male ORB to 3/4" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$64.40
(0) Write a Review
SKU:
6405-24-12-O

Product Details

Connection A
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection B
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.92 lb
ShapeFemale Adapter
Cross References
Aeroquip2216-12-24S
Parker24-3/4 F5OG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
