6405-24-16-O

1-7/8-12 Male ORB × 1" Female NPTF · Female Adapter

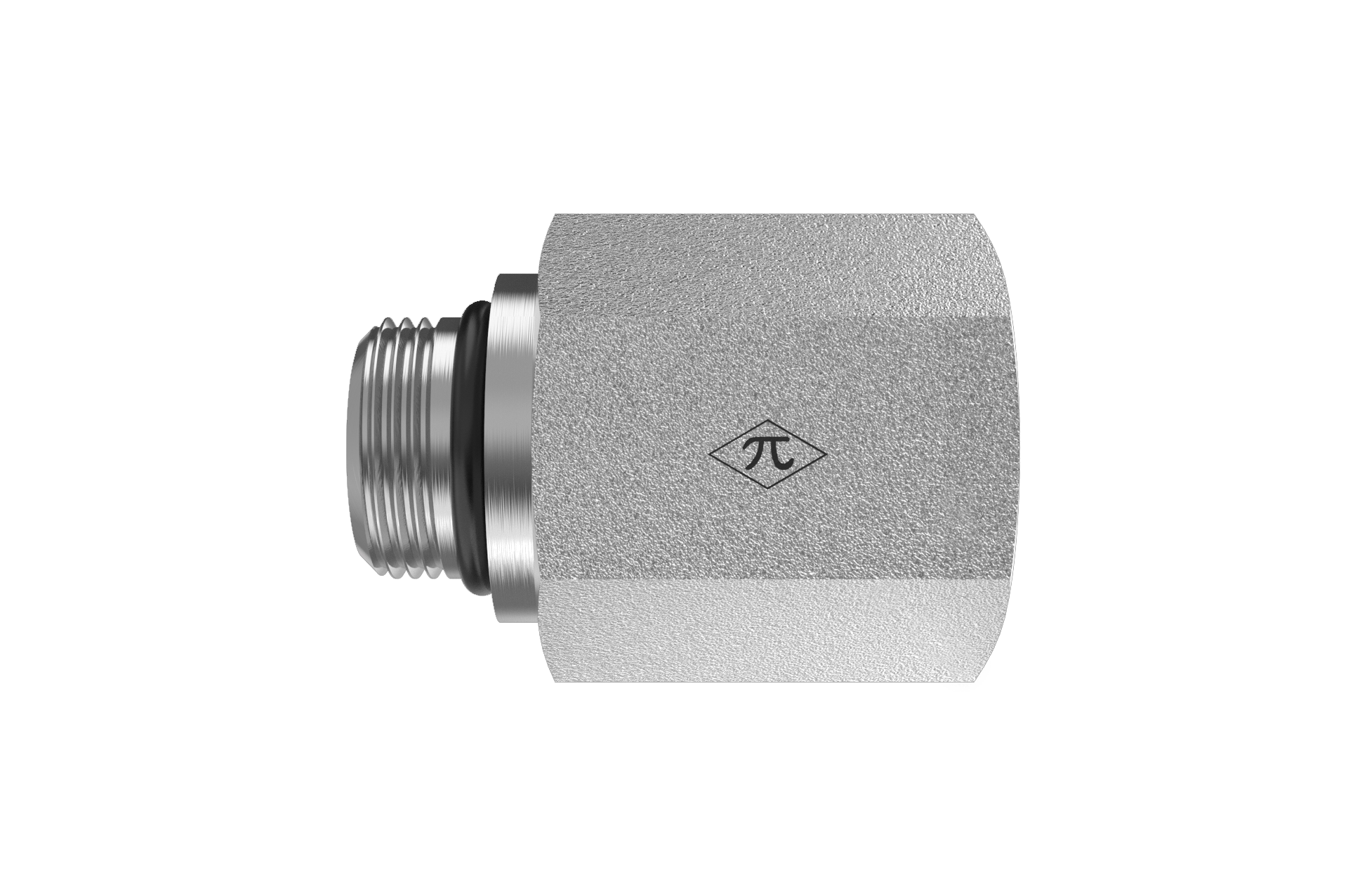

The HGW 6405-24-16-O is a female adapter joining 1-7/8-12 male ORB to 1" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$28.06
(0) Write a Review
SKU:
6405-24-16-O

Product Details

Connection A
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection B
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1.13 lb
ShapeFemale Adapter
Cross References
Aeroquip2216-16-24S
Parker24-1 F5OG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
