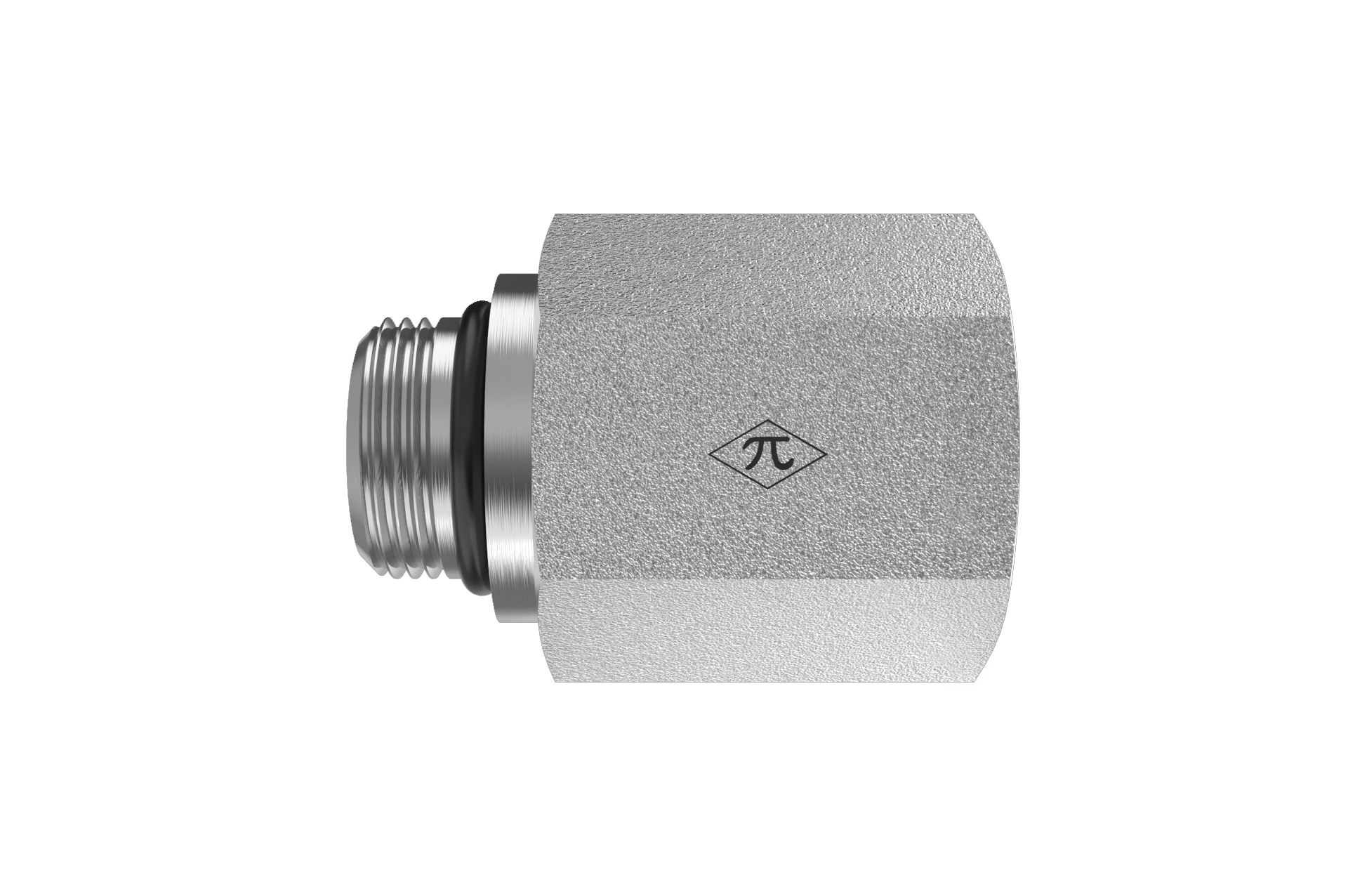

6405-24-32-O

1-7/8-12 Male ORB x 2" Female NPTF

6405-24-32-O is a 1-7/8-12 Male ORB x 2" Female NPTF in the 6405-O Series. For connecting SAE port to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Adapter
$176.84
(0) Write a Review
SKU:
6405-24-32-O

Product Details

Connection A
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection B
TypeFemale NPTF
Pipe Size2"
StandardSAE J476
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight2.23 lb
ShapeFemale Adapter
Cross References
Aeroquip2216-32-24S
Parker24-2 F5OG-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
