HGW HYDRAULICS

6410-02-04-O

5/16-24 Male ORB × 7/16-20 Female ORB · Straight Reducer

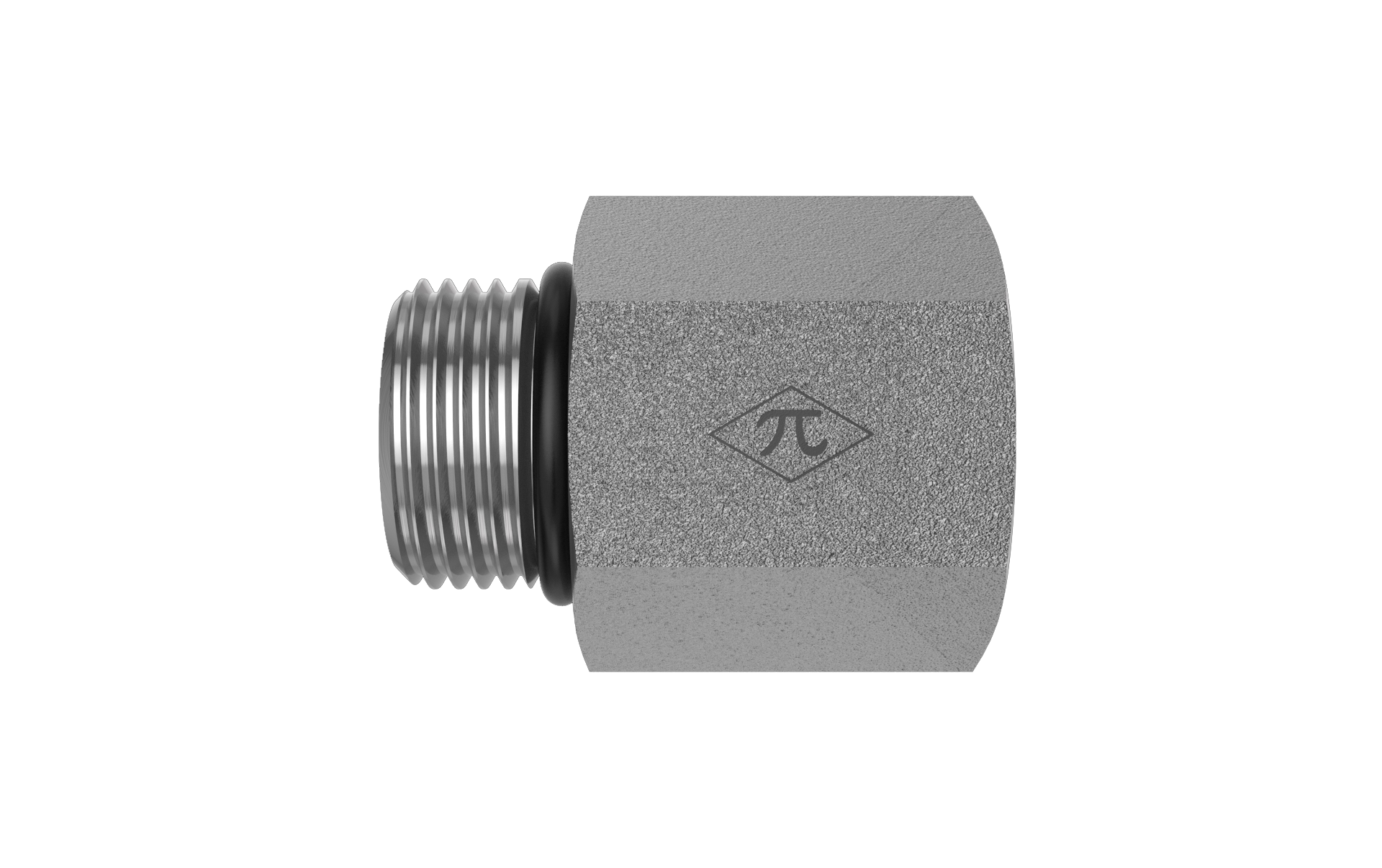

The HGW 6410-02-04-O is a straight reducer joining 5/16-24 male ORB to 7/16-20 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Reducer
$4.20
(0) Write a Review
SKU:
6410-02-04-O

Product Details

Connection A
TypeMale ORB
Port Size5/16-24
StandardSAE J1926
Thread Type5/16-24 UNF
Size5/16-24
Connection B
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type5/16-24 UNF
Size7/16-20
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.06 lb
Cross References
AeroquipFF1010-0204S
Parker2-4 F5OG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
