HGW HYDRAULICS

6410-03-03-O

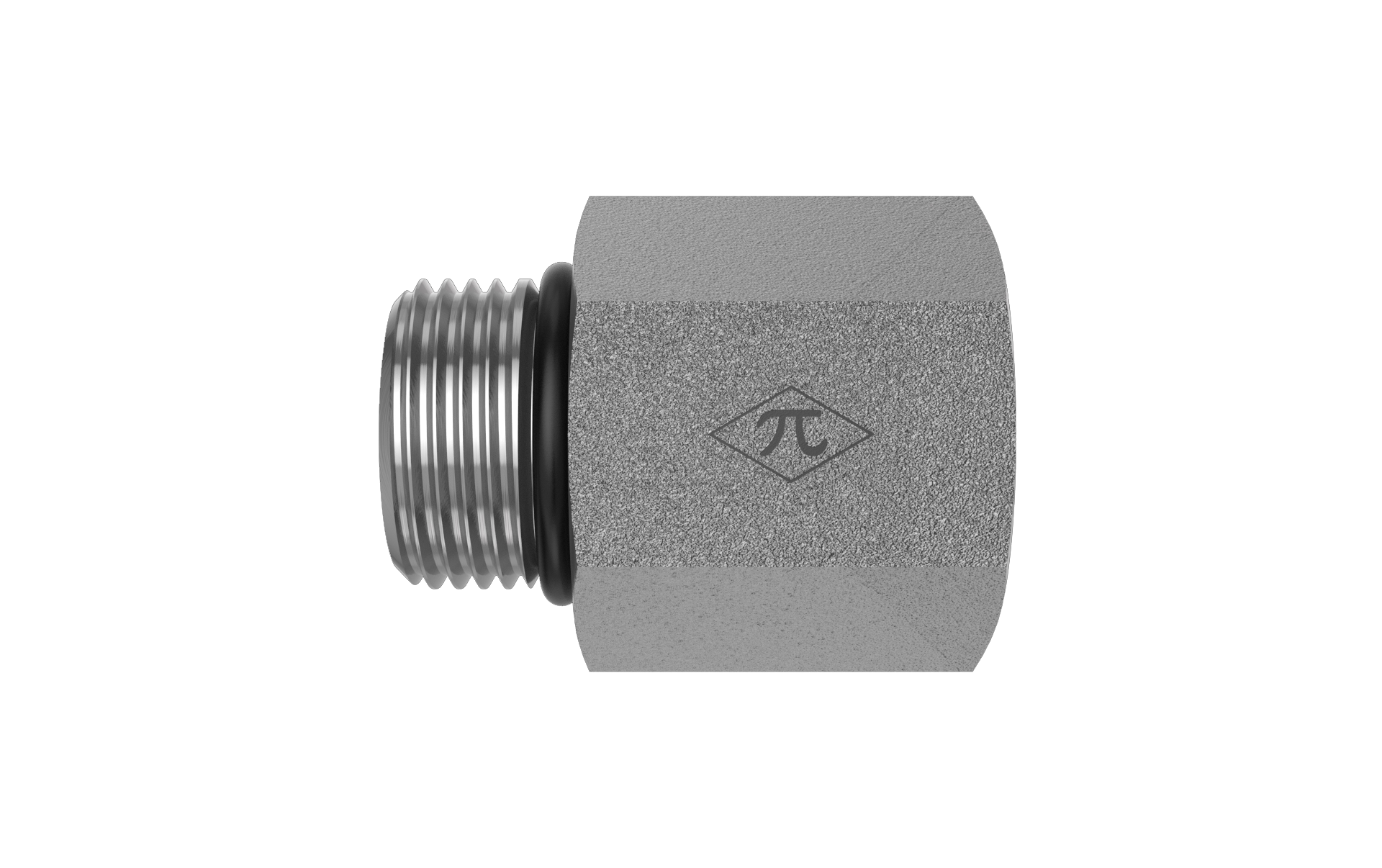

3/8-24 Male ORB x 3/8-24 Female ORB

6410-03-03-O is a 3/8-24 Male ORB x 3/8-24 Female ORB in the 6410-O Series. For reducing or expanding between two SAE O-Ring Boss ports of different sizes.

  • Steel
  • Trivalent Zinc
  • Reducer
$14.48
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size3/8-24
StandardSAE J1926
Thread Type3/8-24 UNF
Connection B
TypeFemale ORB
Port Size3/8-24
StandardSAE J1926
Thread Type3/8-24 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.37 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
