HGW HYDRAULICS

6410-04-02-O

7/16-20 Male ORB × 5/16-24 Female ORB · Straight Reducer

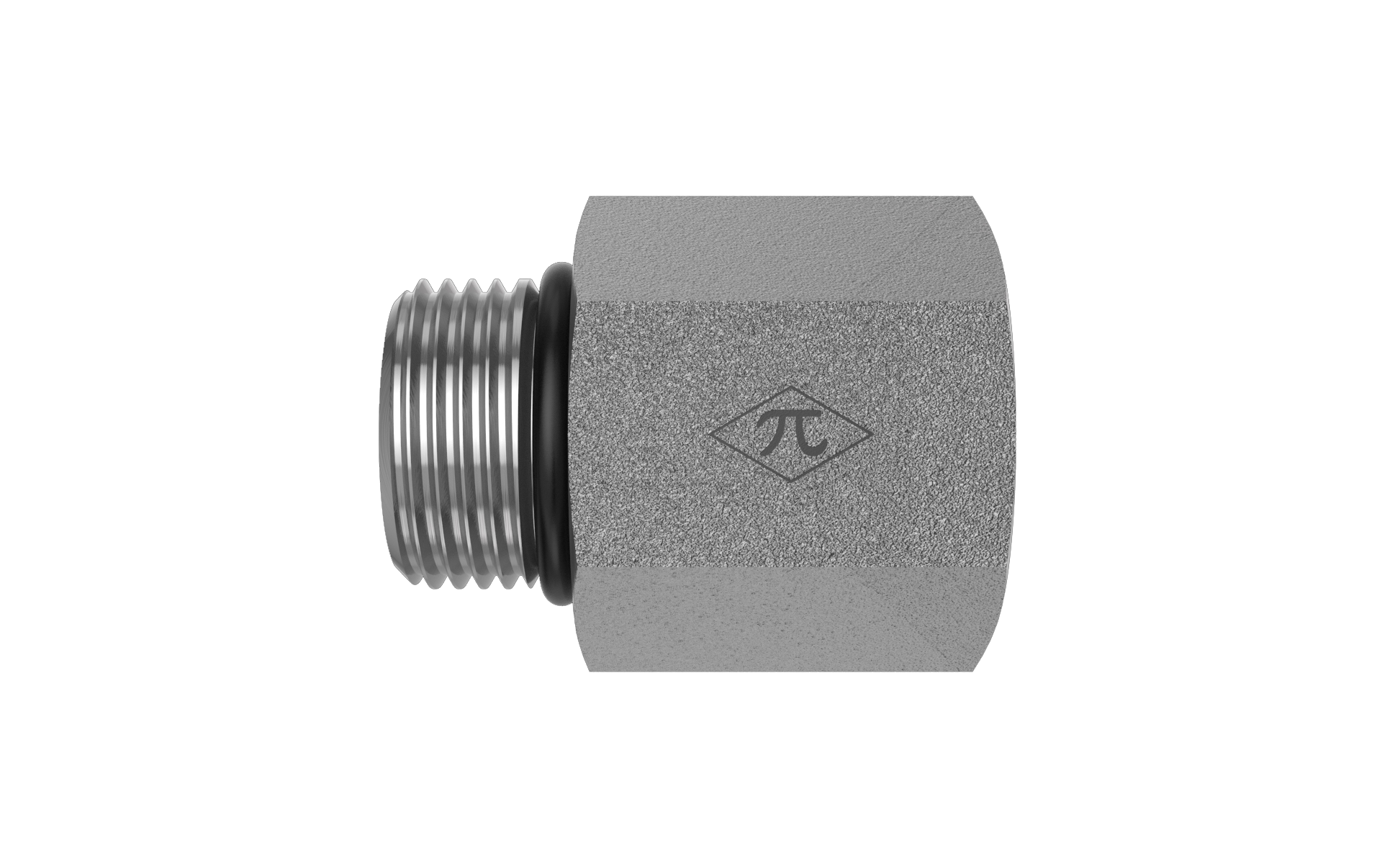

The HGW 6410-04-02-O is a straight reducer joining 7/16-20 male ORB to 5/16-24 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Reducer
$2.13
(0) Write a Review
SKU:
6410-04-02-O

Product Details

Connection A
TypeMale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection B
TypeFemale ORB
Port Size5/16-24
StandardSAE J1926
Thread Type7/16-20 UNF
Size5/16-24
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.06 lb
Cross References
AeroquipFF1010-0402S
Parker4-2 F5OG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
