HGW HYDRAULICS

6410-06-06-O-SS

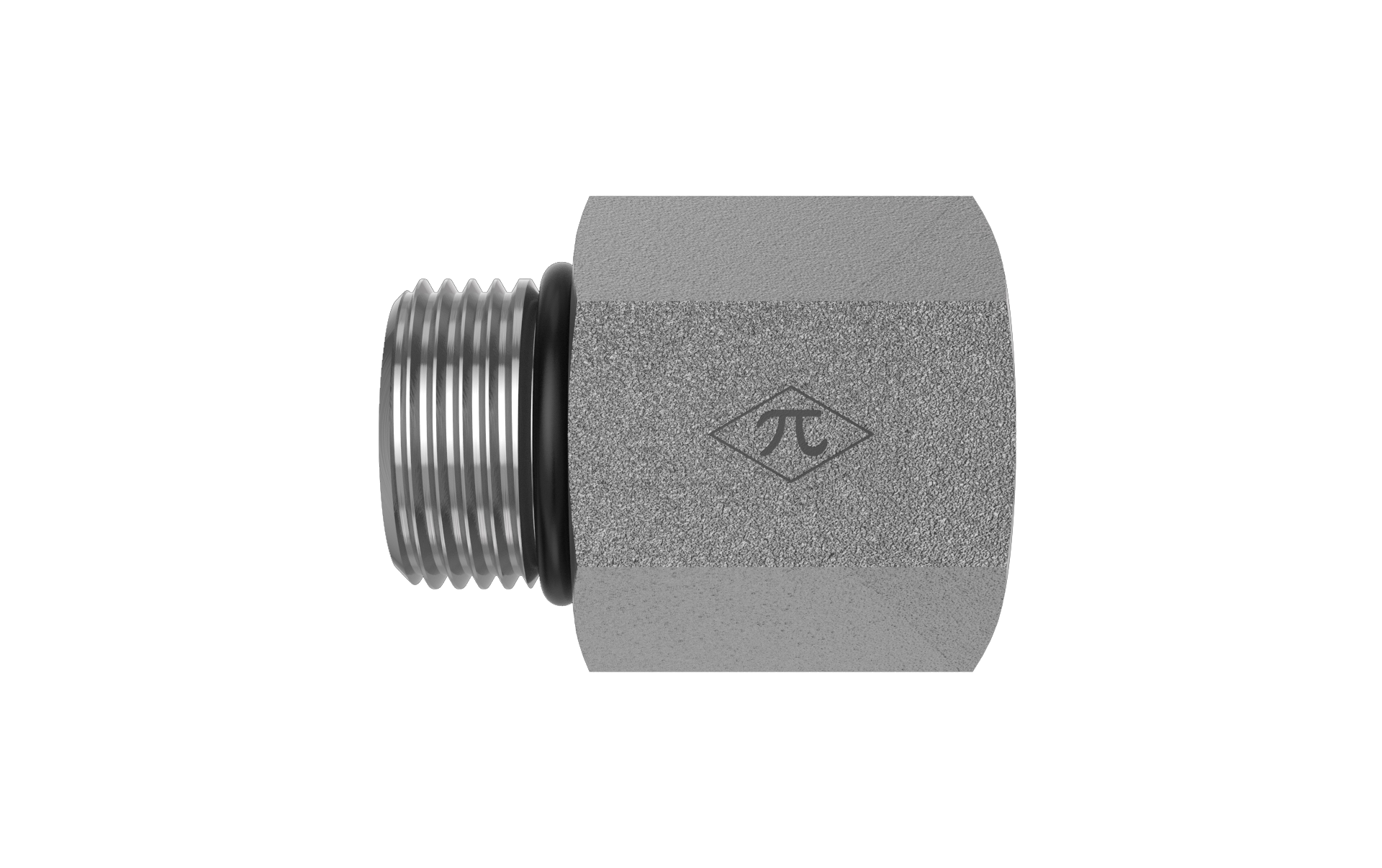

9/16-18 Male ORB × 9/16-18 Female ORB · Straight Reducer

The HGW 6410-06-06-O-SS is a straight reducer joining 9/16-18 male ORB to 9/16-18 female ORB. Made from stainless steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Reducer
$202.56
(0) Write a Review
SKU:
6410-06-06-O-SS

Product Details

Connection A
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection B
TypeFemale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeReducer
Weight0.14 lb
Cross References
Aeroquip259-FF1010-0606
Parker6-6 F5OG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
