HGW HYDRAULICS

6410-06-10-O

9/16-18 Male ORB × 7/8-14 Female ORB · Straight Reducer

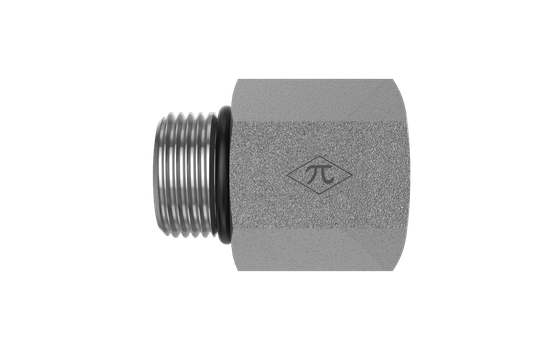

The HGW 6410-06-10-O is a straight reducer joining 9/16-18 male ORB to 7/8-14 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Reducer
$7.91
(0) Write a Review
SKU:
6410-06-10-O

Product Details

Connection A
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection B
TypeFemale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type9/16-18 UNF
Size7/8-14
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.20 lb
Cross References
AeroquipFF1010-0610S
Parker6-10 F5OG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
