HGW HYDRAULICS

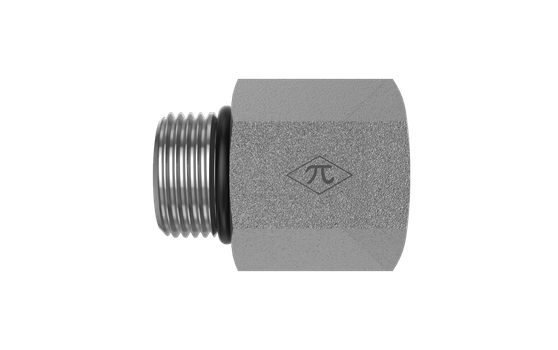

6410-08-06-O

3/4-16 Male ORB x 9/16-18 Female ORB

6410-08-06-O is a 3/4-16 Male ORB x 9/16-18 Female ORB in the 6410-O Series. For reducing or expanding between two SAE O-Ring Boss ports of different sizes.

  • Steel
  • Trivalent Zinc
  • Reducer
$4.48
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Connection B
TypeFemale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.06 lb
Cross References
AeroquipFF1010-0806S
Parker8-6 F5OG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
