HGW HYDRAULICS

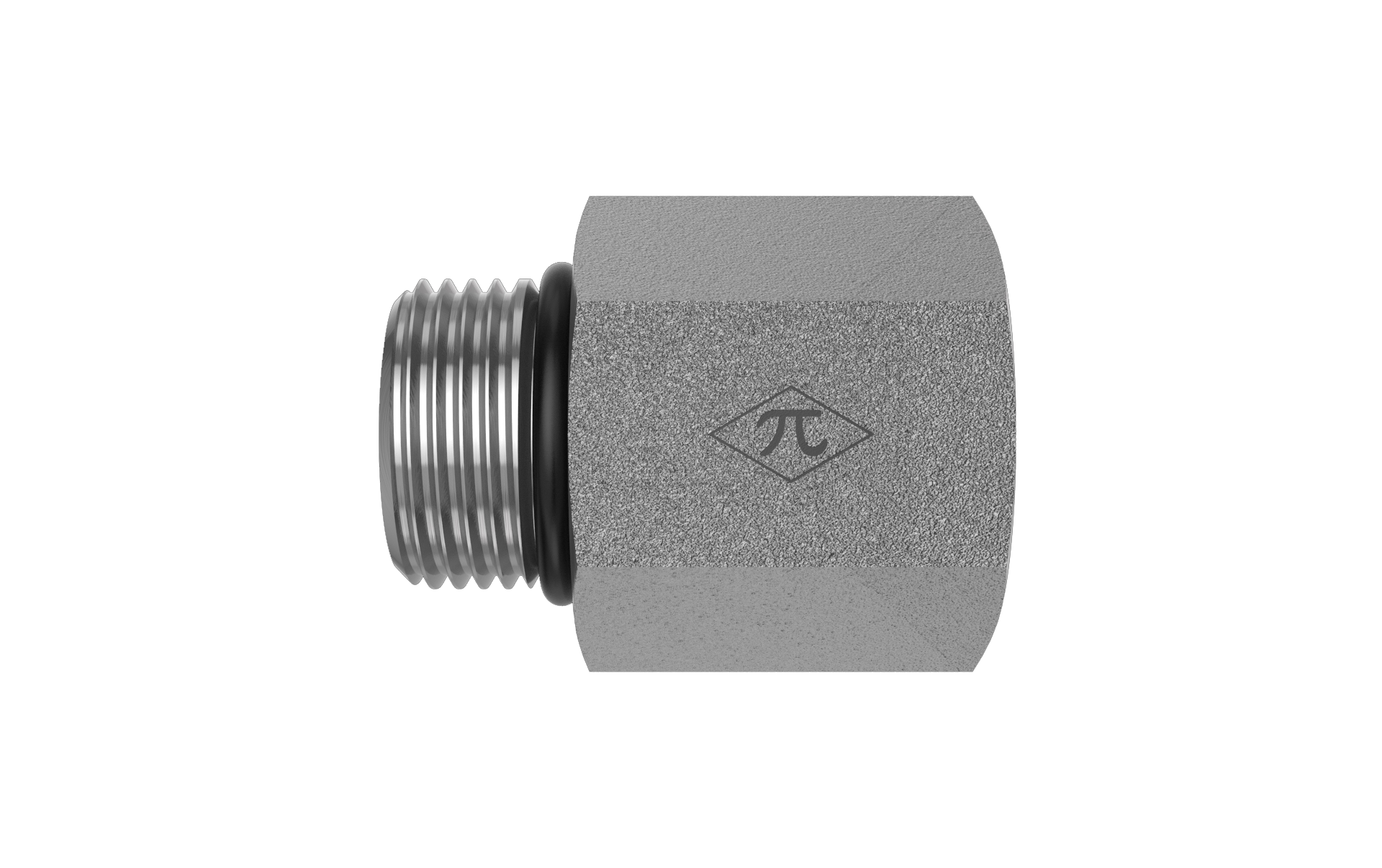

6410-08-08-O

3/4-16 Male ORB × 3/4-16 Female ORB · Straight Reducer

The HGW 6410-08-08-O is a straight reducer joining 3/4-16 male ORB to 3/4-16 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Reducer
$3.64
(0) Write a Review
SKU:
6410-08-08-O

Product Details

Connection A
TypeMale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Size3/4-16
Connection B
TypeFemale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type3/4-16 UNF
Size3/4-16
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.18 lb
Cross References
AeroquipFF1010-0808S
Parker8-8 F5OG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
