HGW HYDRAULICS

6410-10-04-O-VITON

7/8-14 Male ORB × 7/16-20 Female ORB · Straight Reducer

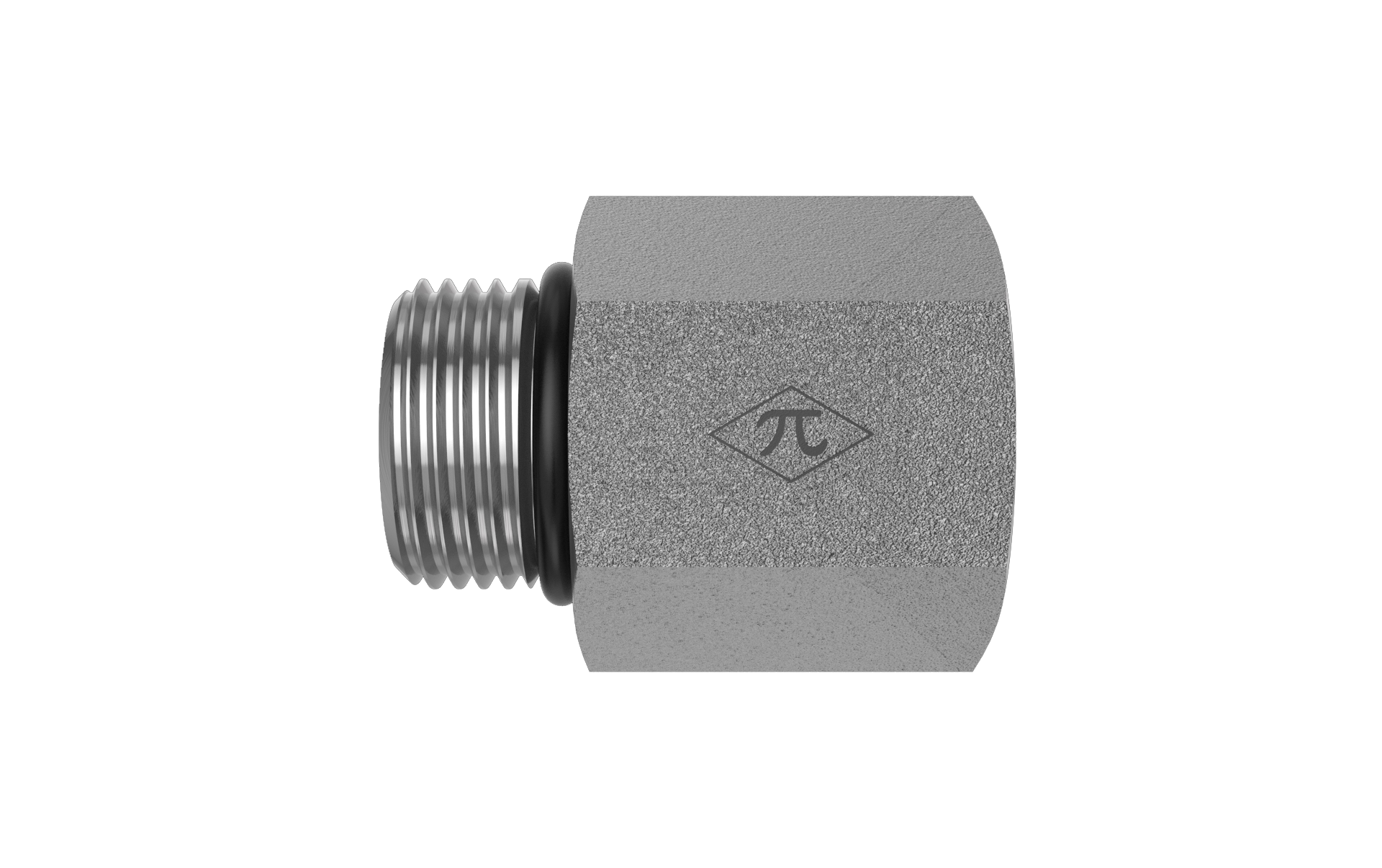

The HGW 6410-10-04-O-VITON is a straight reducer joining 7/8-14 male ORB to 7/16-20 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Reducer
$18.98
(0) Write a Review
SKU:
6410-10-04-O-VITON

Product Details

Connection A
TypeMale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection B
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/16-20
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.19 lb
Cross References
Aeroquip213-FF1010-1004
Parker10-4 F5OG5-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
