HGW HYDRAULICS

6410-10-08-O-SS

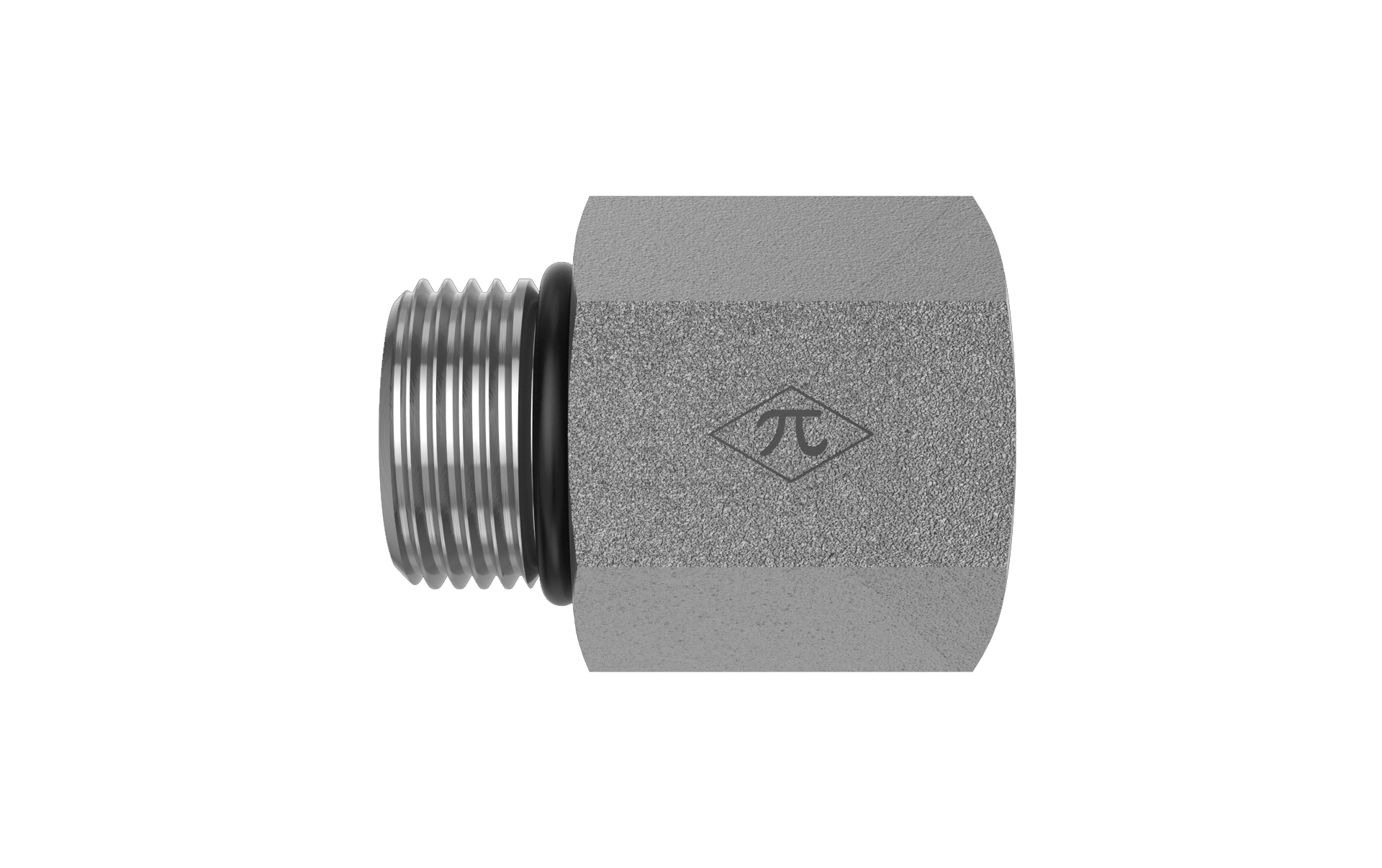

7/8-14 Male ORB × 3/4-16 Female ORB · Straight Reducer

The HGW 6410-10-08-O-SS is a straight reducer joining 7/8-14 male ORB to 3/4-16 female ORB. Made from stainless steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Reducer
$55.63
(0) Write a Review
SKU:
6410-10-08-O-SS

Product Details

Connection A
TypeMale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection B
TypeFemale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type7/8-14 UNF
Size3/4-16
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeReducer
Weight0.17 lb
Cross References
Aeroquip259-FF1010-1008
Parker10-8 F5OG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
