HGW HYDRAULICS

6410-10-10-O-SS

7/8-14 Male ORB × 7/8-14 Female ORB · Straight Reducer

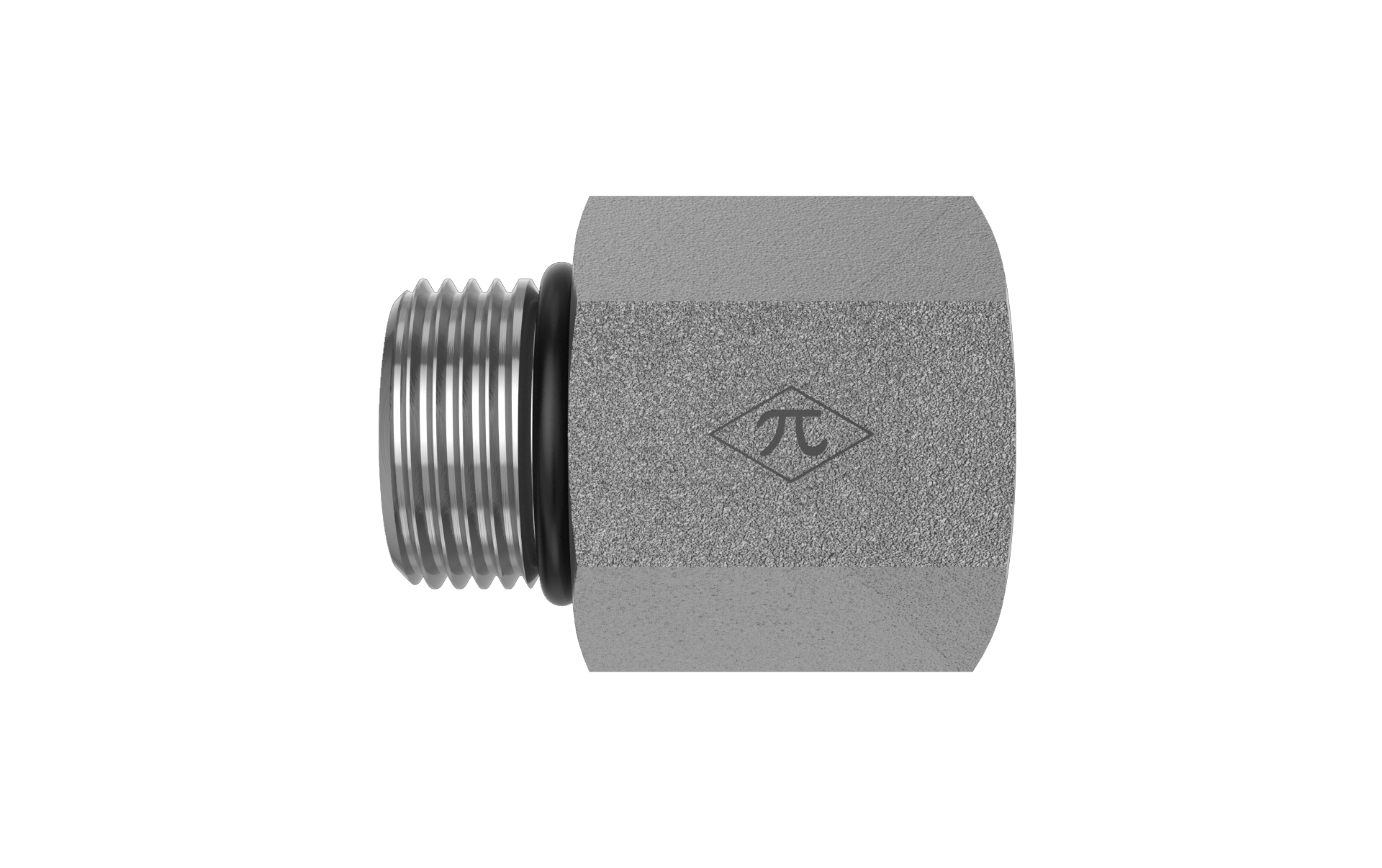

The HGW 6410-10-10-O-SS is a straight reducer joining 7/8-14 male ORB to 7/8-14 female ORB. Made from stainless steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Reducer
$254.98
(0) Write a Review
SKU:
6410-10-10-O-SS

Product Details

Connection A
TypeMale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection B
TypeFemale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeReducer
Weight0.18 lb
Cross References
Aeroquip259-FF1010-1010
Parker10-10 F5OG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
