HGW HYDRAULICS

6410-10-16-O

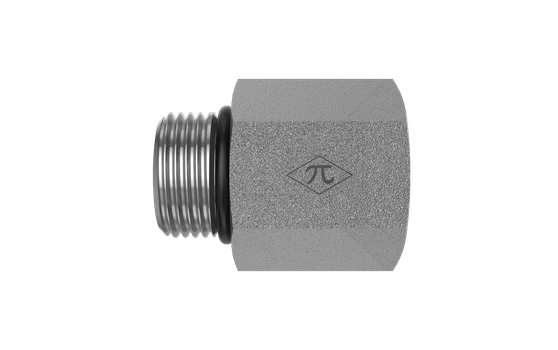

7/8-14 Male ORB × 1-5/16-12 Female ORB · Straight Reducer

The HGW 6410-10-16-O is a straight reducer joining 7/8-14 male ORB to 1-5/16-12 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Reducer
$20.85
(0) Write a Review
SKU:
6410-10-16-O

Product Details

Connection A
TypeMale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection B
TypeFemale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type7/8-14 UNF
Size1-5/16-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.45 lb
Cross References
AeroquipFF1010-1016S
Parker10-16 FSOG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
