HGW HYDRAULICS

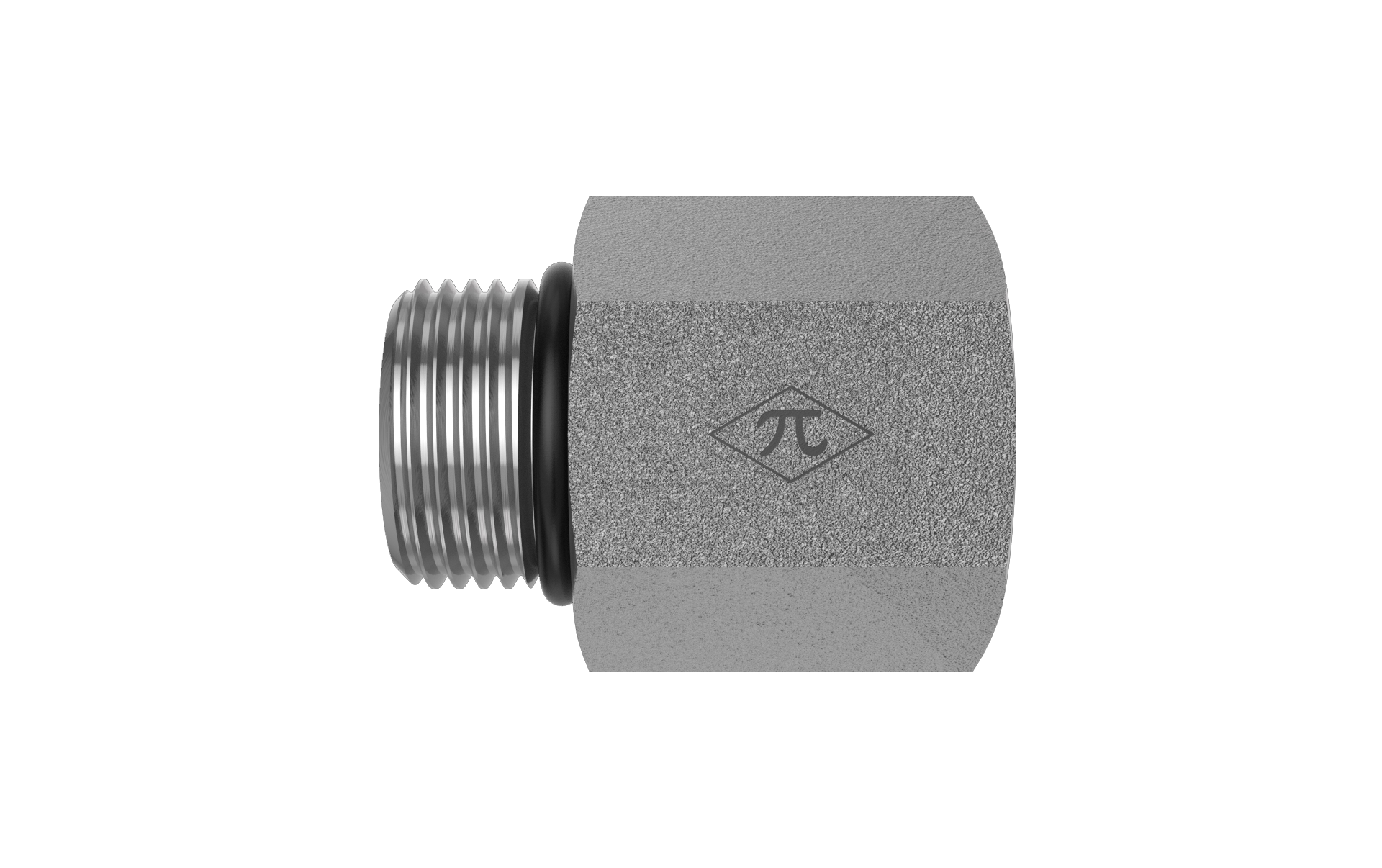

6410-12-08-O

1-1/16-12 Male ORB × 3/4-16 Female ORB · Straight Reducer

The HGW 6410-12-08-O is a straight reducer joining 1-1/16-12 male ORB to 3/4-16 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Reducer
$4.22
(0) Write a Review
SKU:
6410-12-08-O

Product Details

Connection A
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection B
TypeFemale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type1-1/16-12 UN
Size3/4-16
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.33 lb
Cross References
AeroquipFF1010-1208S
Parker12-8 F5OG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
