HGW HYDRAULICS

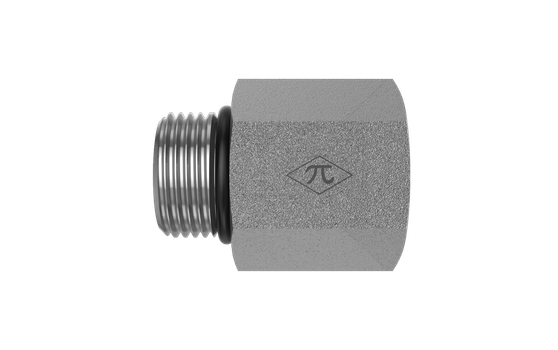

6410-12-12-O-SS

1-1/16-12 Male ORB × 1-1/16-12 Female ORB · Straight Reducer

The HGW 6410-12-12-O-SS is a straight reducer joining 1-1/16-12 male ORB to 1-1/16-12 female ORB. Made from stainless steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Reducer
$346.81
(0) Write a Review
SKU:
6410-12-12-O-SS

Product Details

Connection A
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection B
TypeFemale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeReducer
Weight0.42 lb
Cross References
Aeroquip259-FF1010-1212
Parker12-12 F5OG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
