HGW HYDRAULICS

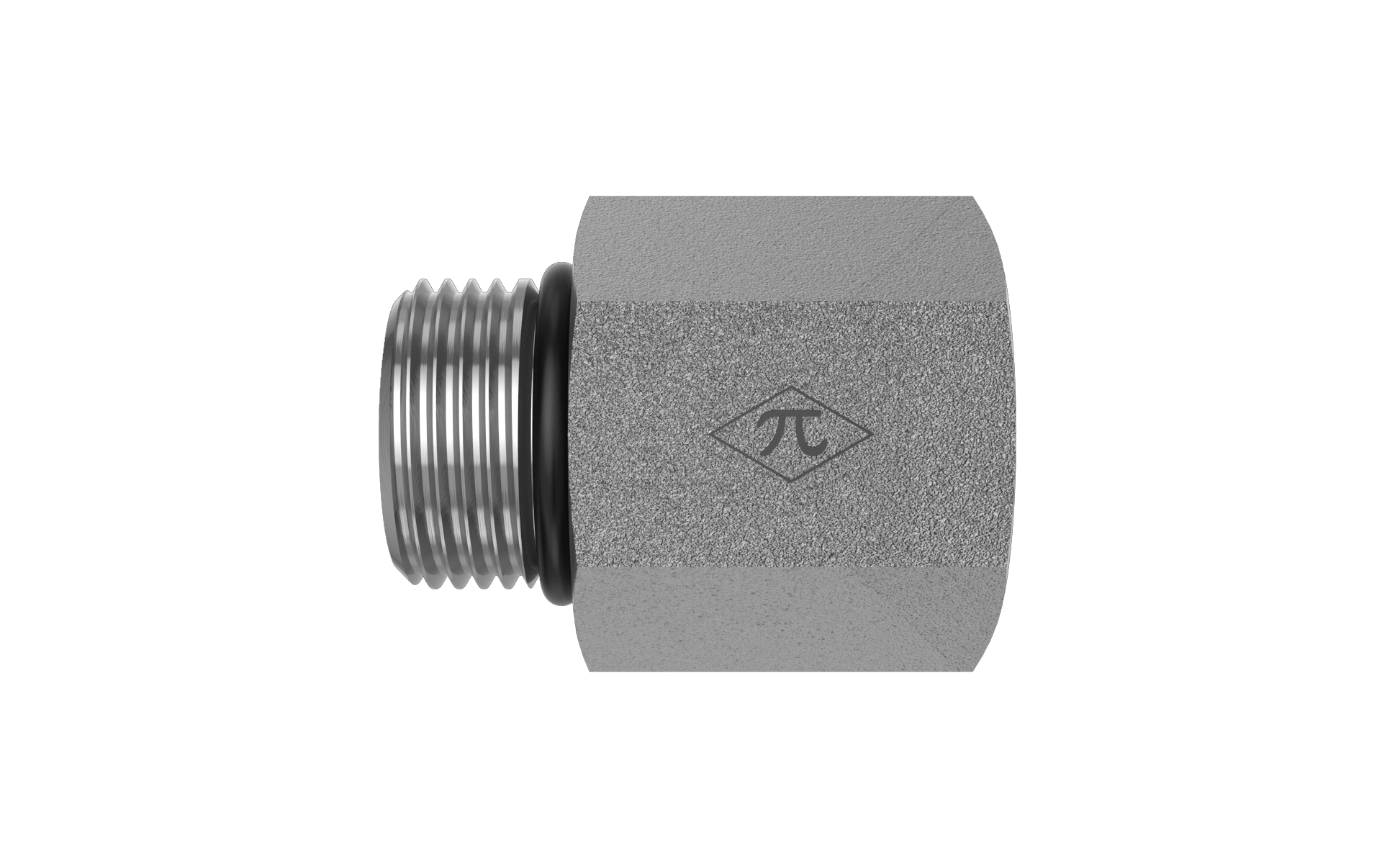

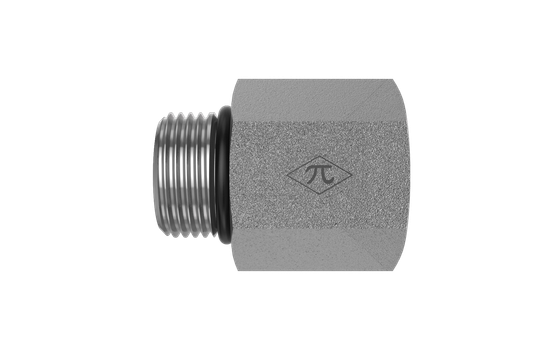

6410-12-20-O

1-1/16-12 Male ORB x 1-5/8-12 Female ORB

6410-12-20-O is a 1-1/16-12 Male ORB x 1-5/8-12 Female ORB in the 6410-O Series. For reducing or expanding between two SAE O-Ring Boss ports of different sizes.

  • Steel
  • Trivalent Zinc
  • Reducer
$60.93
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Connection B
TypeFemale ORB
Port Size1-5/8-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.78 lb
Cross References
AeroquipFF1010-1220S
Parker12-20 F5OG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
