HGW HYDRAULICS

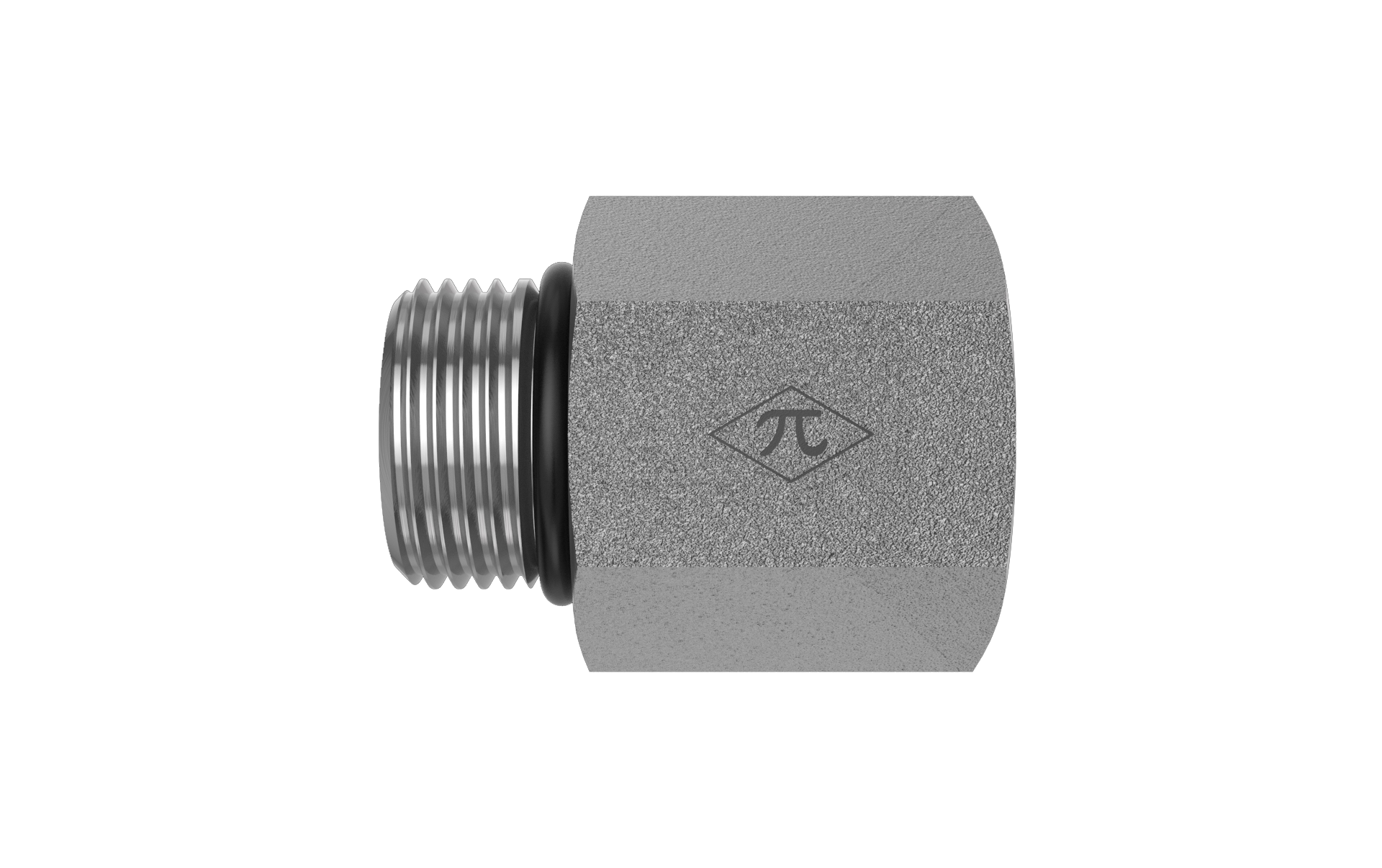

6410-14-12-O-SS

1-3/16-12 Male ORB x 1-1/16-12 Female ORB

6410-14-12-O-SS is a 1-3/16-12 Male ORB x 1-1/16-12 Female ORB in the 6410-O Series. For reducing or expanding between two SAE O-Ring Boss ports of different sizes.

  • Stainless Steel
  • Reducer
  • None
$84.48
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-3/16-12
StandardSAE J1926
Thread Type1-3/16-12 UN
Connection B
TypeFemale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-3/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeReducer
Weight0.39 lb
PlatingNone
Cross References
Aeroquip259-FF1010-1412
Parker14-12 F5OG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
