HGW HYDRAULICS

6410-16-24-O

1-5/16-12 Male ORB × 1-7/8-12 Female ORB · Straight Reducer

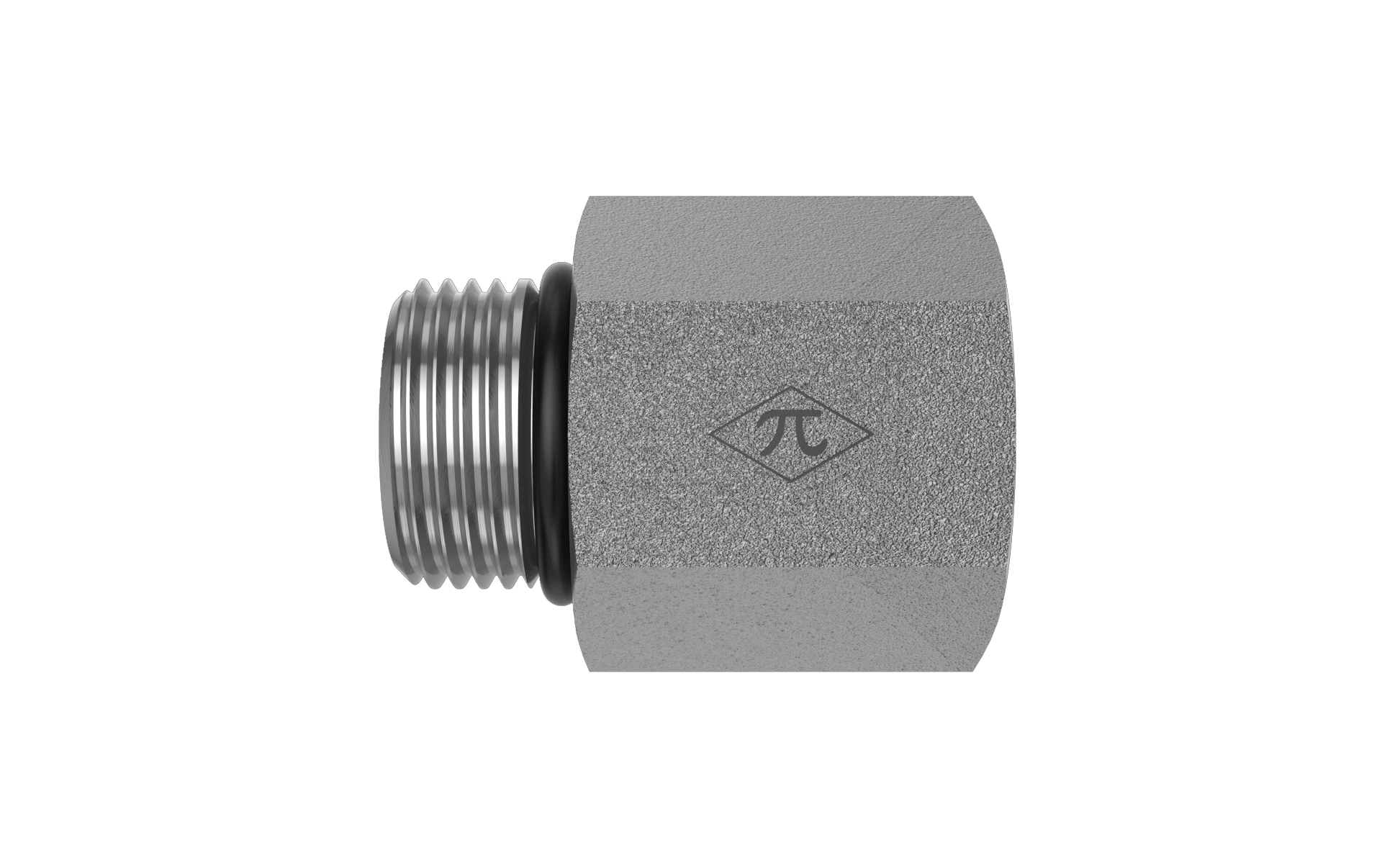

The HGW 6410-16-24-O is a straight reducer joining 1-5/16-12 male ORB to 1-7/8-12 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Reducer
$51.40
(0) Write a Review
SKU:
6410-16-24-O

Product Details

Connection A
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Size1-5/16-12
Connection B
TypeFemale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Size1-7/8-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.80 lb
Cross References
AeroquipFF1010-1624S
Parker16-24 F5OG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
