HGW HYDRAULICS

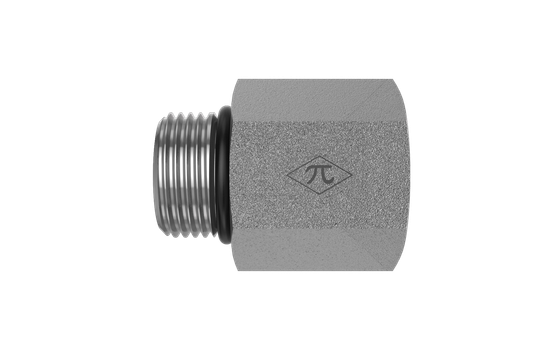

6410-20-08-O

1-5/8-12 Male ORB × 3/4-16 Female ORB · Straight Reducer

The HGW 6410-20-08-O is a straight reducer joining 1-5/8-12 male ORB to 3/4-16 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Reducer
$21.48
(0) Write a Review
SKU:
6410-20-08-O

Product Details

Connection A
TypeMale ORB
Port Size1-5/8-12
StandardSAE J1926
Thread Type1-5/8-12 UN
Size1-5/8-12
Connection B
TypeFemale ORB
Port Size3/4-16
StandardSAE J1926
Thread Type1-5/8-12 UN
Size3/4-16
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.57 lb
Cross References
AeroquipFF1010-2008S
Parker20-8 F5OG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
