HGW HYDRAULICS

6410-20-12-O-VITON

1-5/8-12 Male ORB × 1-1/16-12 Female ORB · Straight Reducer

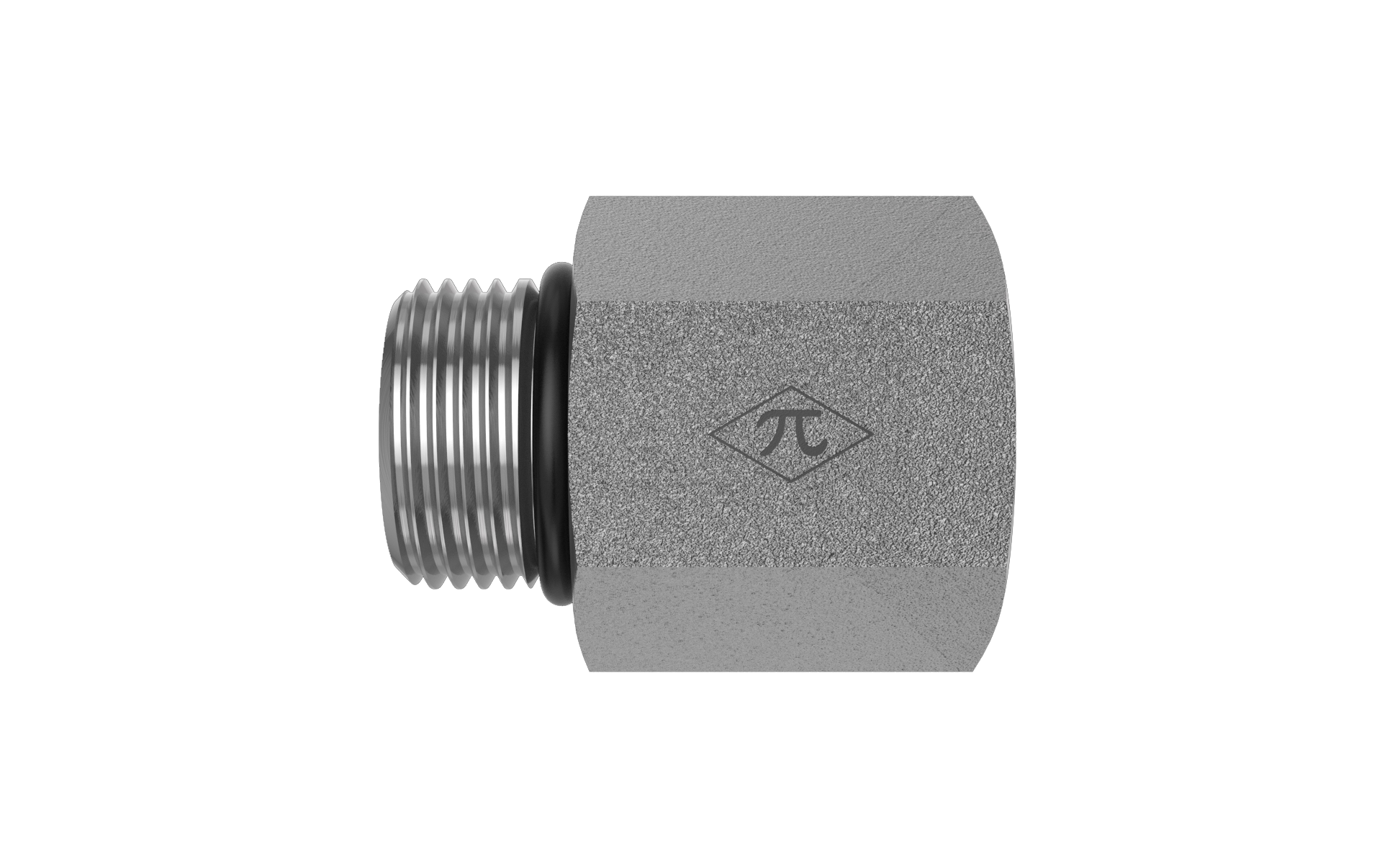

The HGW 6410-20-12-O-VITON is a straight reducer joining 1-5/8-12 male ORB to 1-1/16-12 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Reducer
$47.68
(0) Write a Review
SKU:
6410-20-12-O-VITON

Product Details

Connection A
TypeMale ORB
Port Size1-5/8-12
StandardSAE J1926
Thread Type1-5/8-12 UN
Size1-5/8-12
Connection B
TypeFemale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-5/8-12 UN
Size1-1/16-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.60 lb
Cross References
Aeroquip213-FF1010-2012
Parker20-12 F5OG5-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
