HGW HYDRAULICS

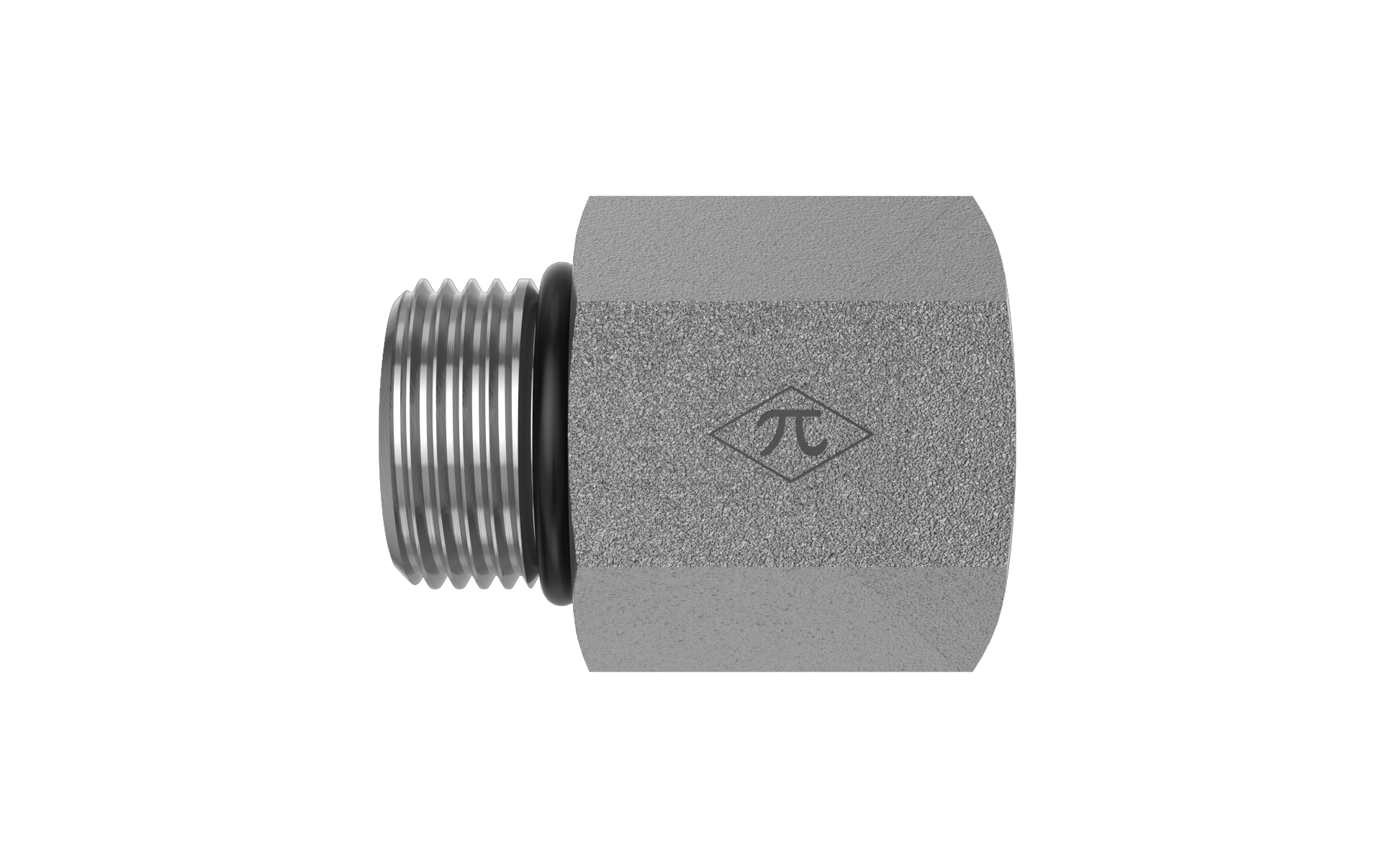

6410-24-10-O-SS

1-7/8-12 Male ORB x 7/8-14 Female ORB

6410-24-10-O-SS is a 1-7/8-12 Male ORB x 7/8-14 Female ORB in the 6410-O Series. For reducing or expanding between two SAE O-Ring Boss ports of different sizes.

  • Stainless Steel
  • Reducer
  • None
$581.79
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection B
TypeFemale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeReducer
Weight0.72 lb
PlatingNone
Cross References
Aeroquip259-FF1010-2410
Parker24-10 F5OG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
