6420-04-04

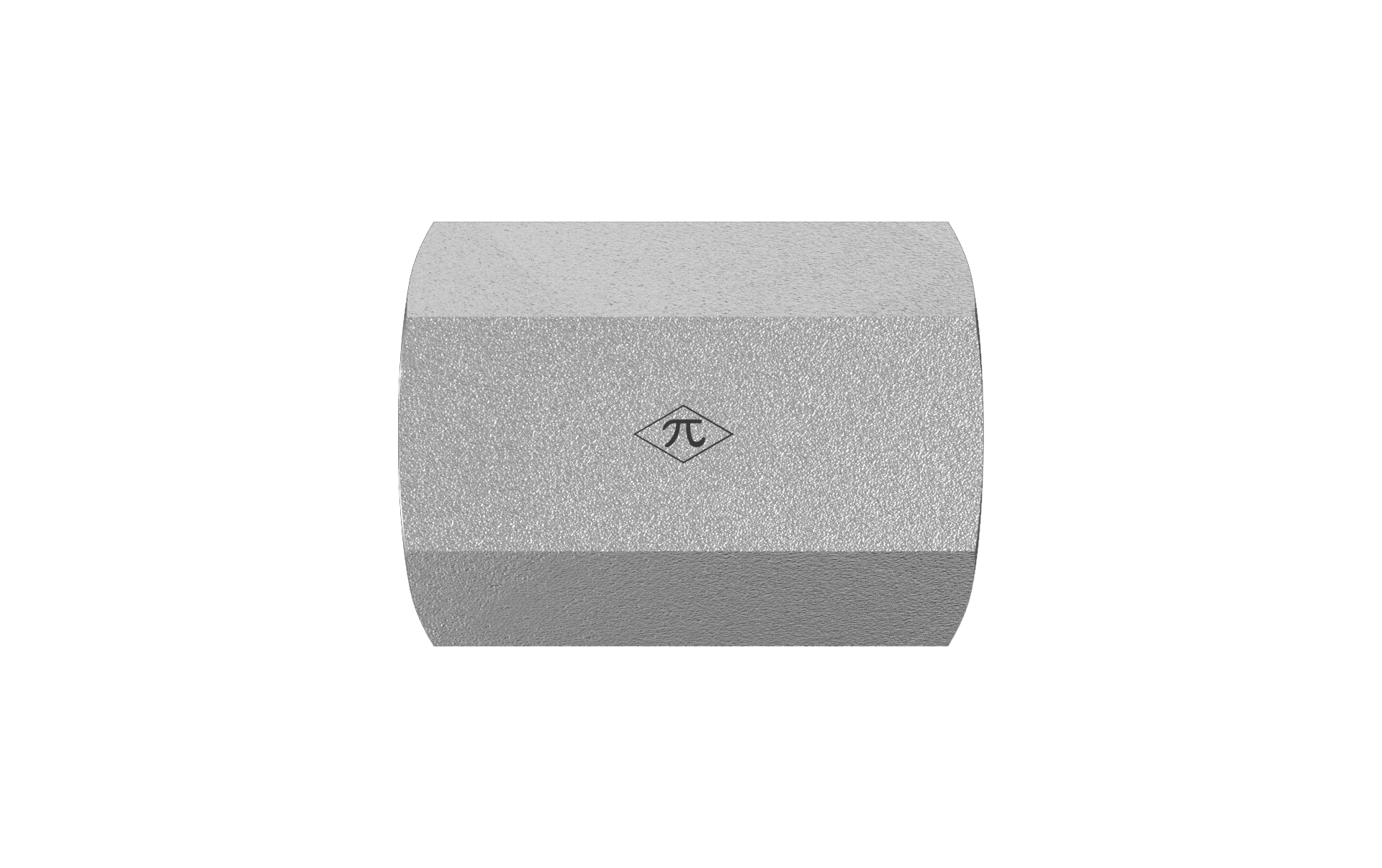

7/16-20 Female ORB × 1/4" Female NPTF · Coupling

The HGW 6420-04-04 is a coupling joining 7/16-20 female ORB to 1/4" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Coupling
$5.36
(0) Write a Review
SKU:
6420-04-04

Product Details

Connection A
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.11 lb
ShapeCoupling
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
