6420-10-08

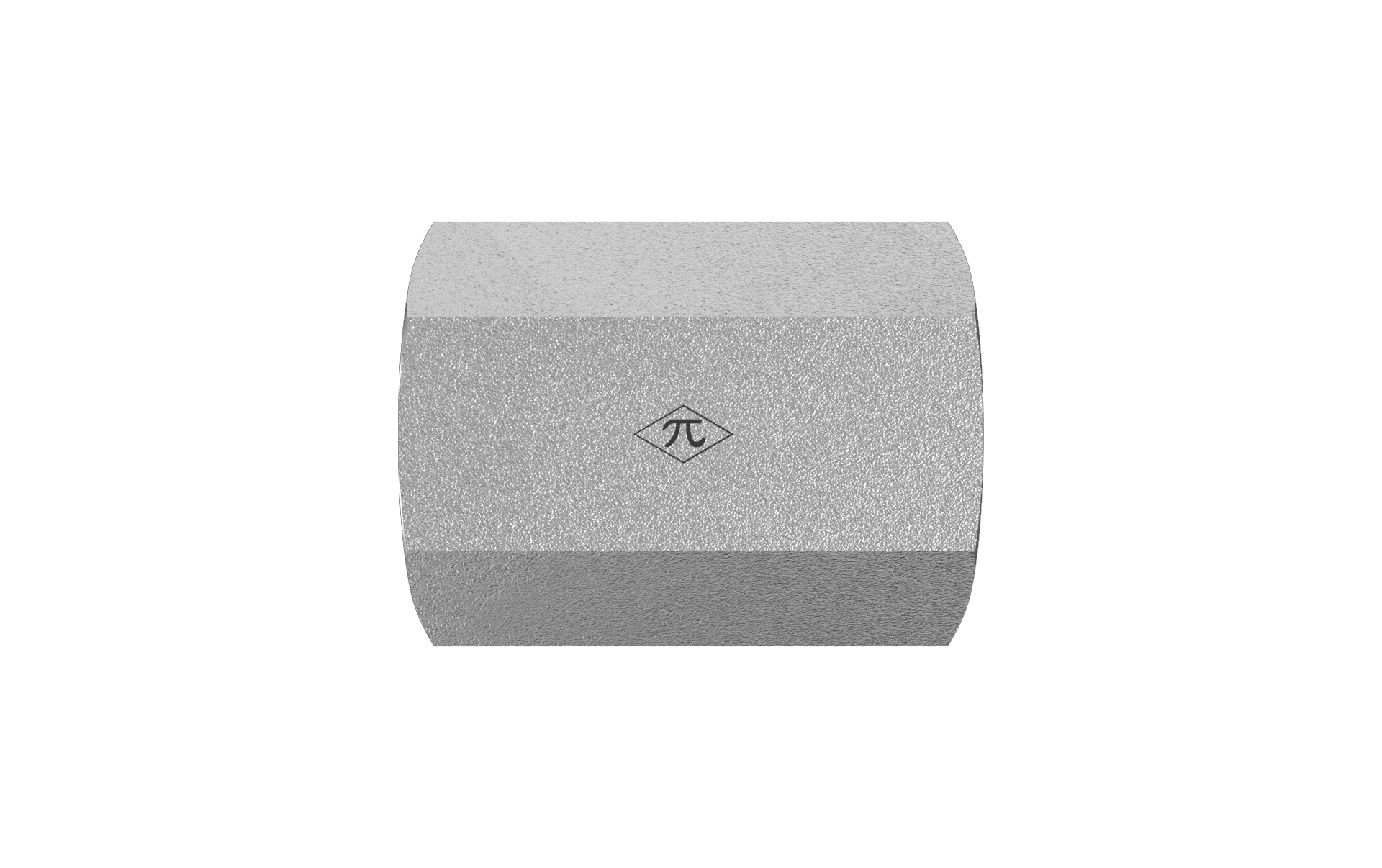

7/8-14 Female ORB × 1/2" Female NPTF · Coupling

The HGW 6420-10-08 is a coupling joining 7/8-14 female ORB to 1/2" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Coupling
$5.95
(0) Write a Review
SKU:
6420-10-08

Product Details

Connection A
TypeFemale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection B
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.28 lb
ShapeCoupling
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
