6420-12-12

1-1/16-12 Female ORB × 3/4" Female NPTF · Coupling

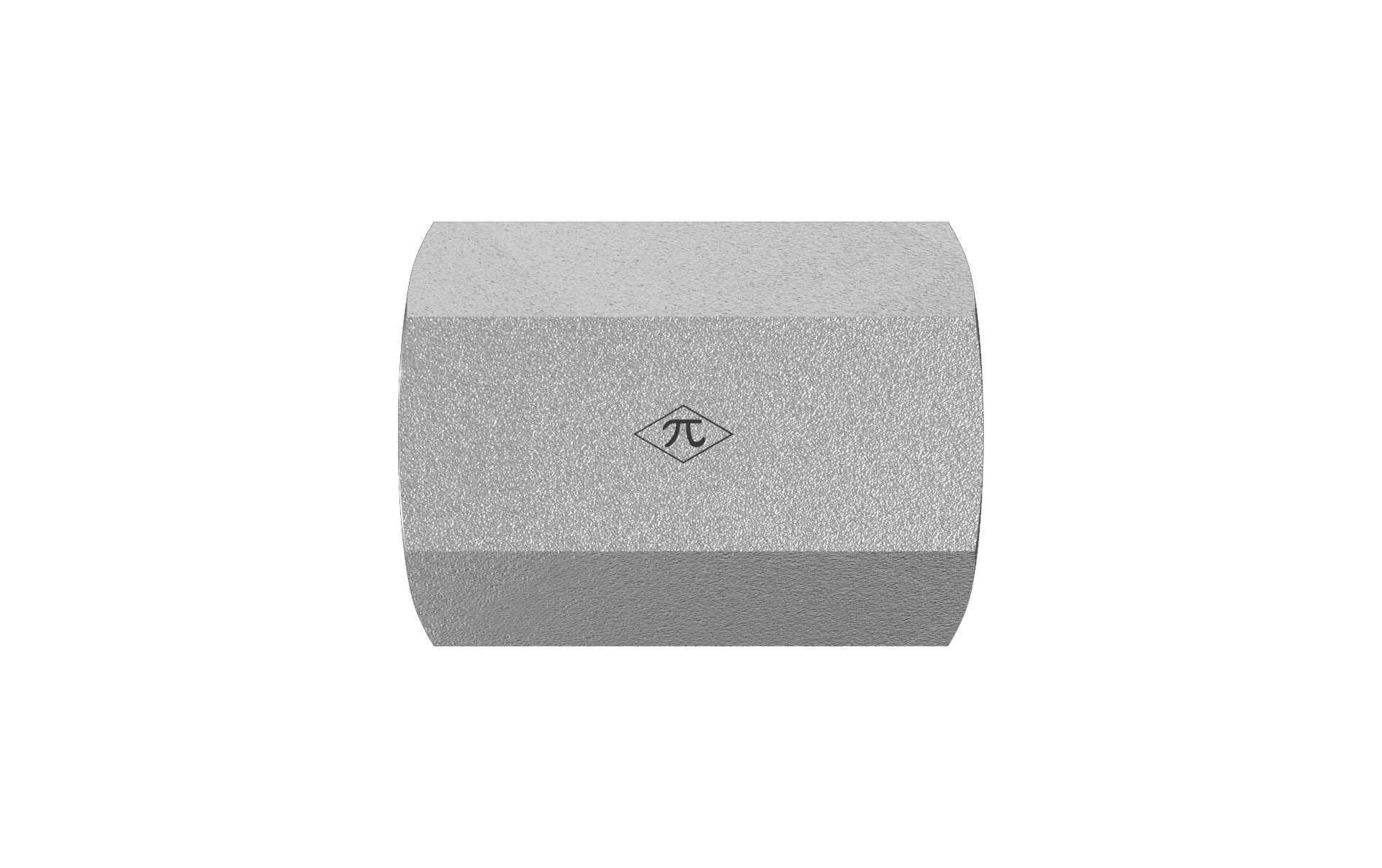

The HGW 6420-12-12 is a coupling joining 1-1/16-12 female ORB to 3/4" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1926 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Coupling
$8.00
(0) Write a Review
SKU:
6420-12-12

Product Details

Connection A
TypeFemale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Size1-1/16-12
Connection B
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.41 lb
ShapeCoupling
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
