HGW HYDRAULICS

6425-04-04-SS

7/16-20 Female ORB × 7/16-20 Female ORB · Coupling

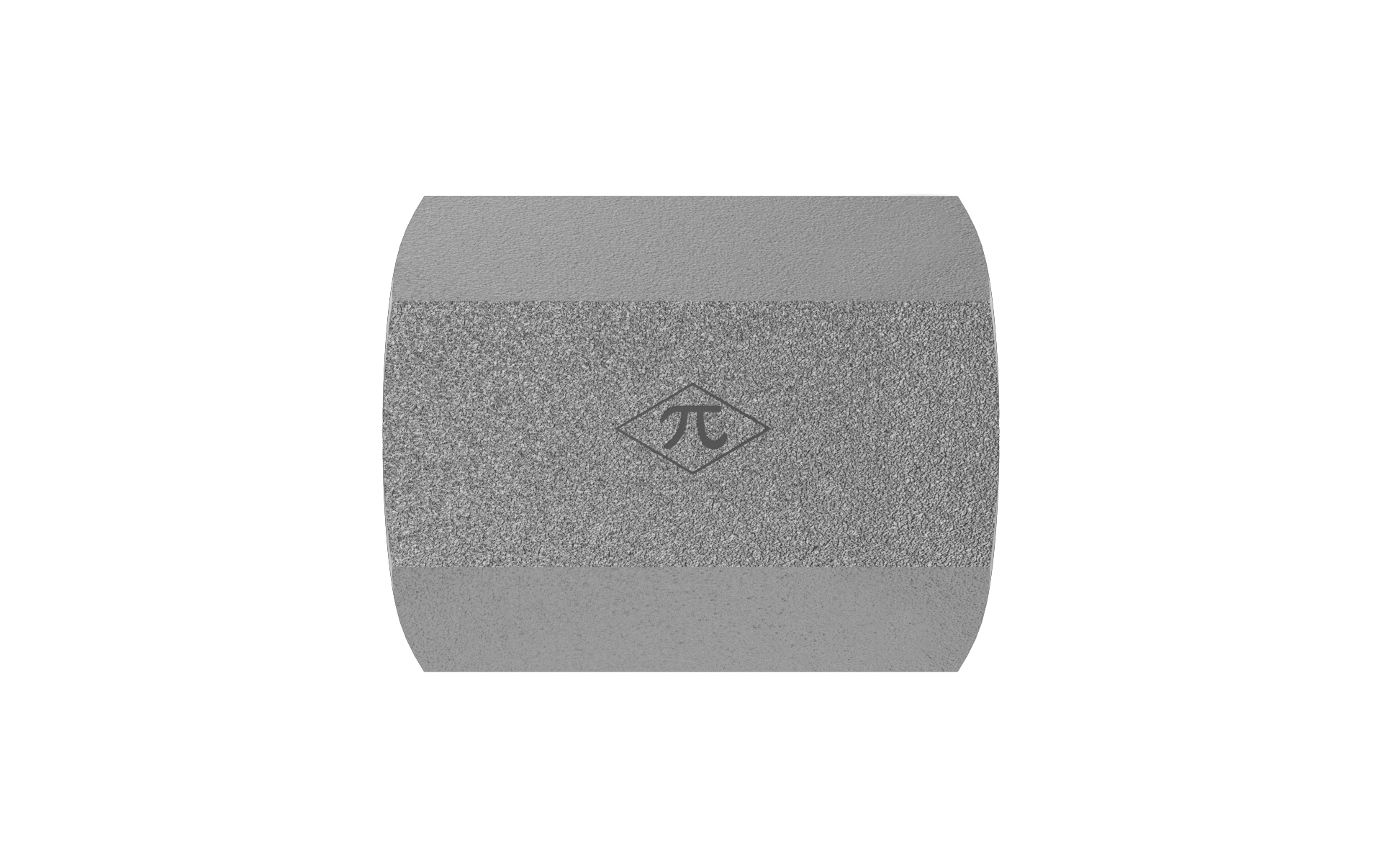

The HGW 6425-04-04-SS is a coupling joining 7/16-20 female ORB to 7/16-20 female ORB. Made from stainless steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Coupling
$16.84
(0) Write a Review
SKU:
6425-04-04-SS

Product Details

Connection A
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection B
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeCoupling
Weight0.09 lb
Cross References
Parker4 G5HG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
