HGW HYDRAULICS

6425-04-04

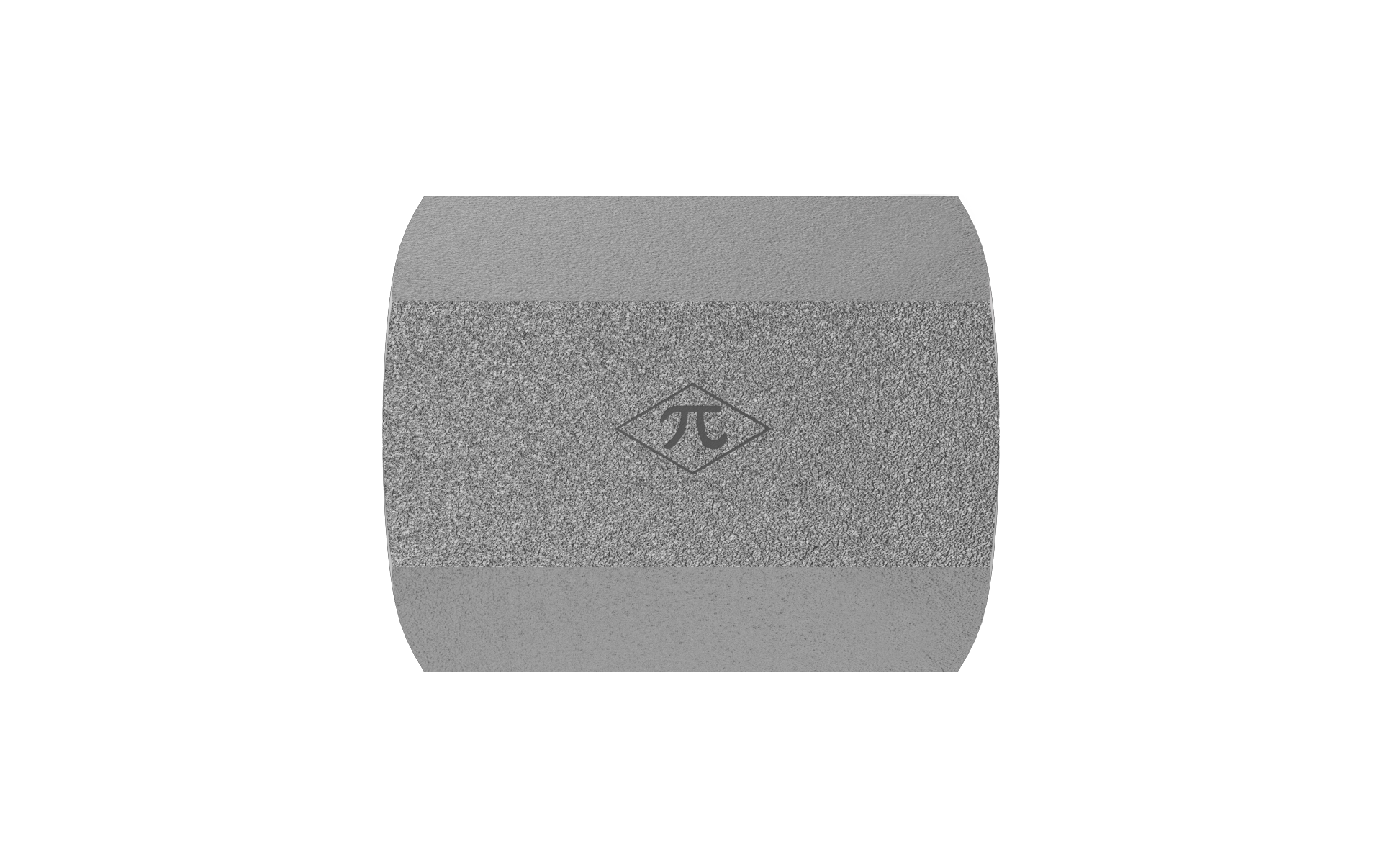

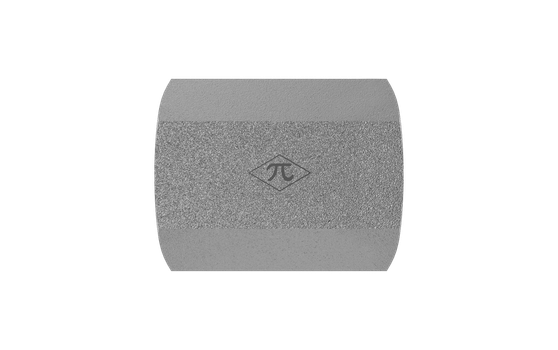

7/16-20 Female ORB × 7/16-20 Female ORB · Coupling

The HGW 6425-04-04 is a coupling joining 7/16-20 female ORB to 7/16-20 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Coupling
$3.15
(0) Write a Review
SKU:
6425-04-04

Product Details

Connection A
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection B
TypeFemale ORB
Port Size7/16-20
StandardSAE J1926
Thread Type7/16-20 UNF
Size7/16-20
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeCoupling
Weight0.09 lb
Cross References
Parker4 G5HG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
