HGW HYDRAULICS

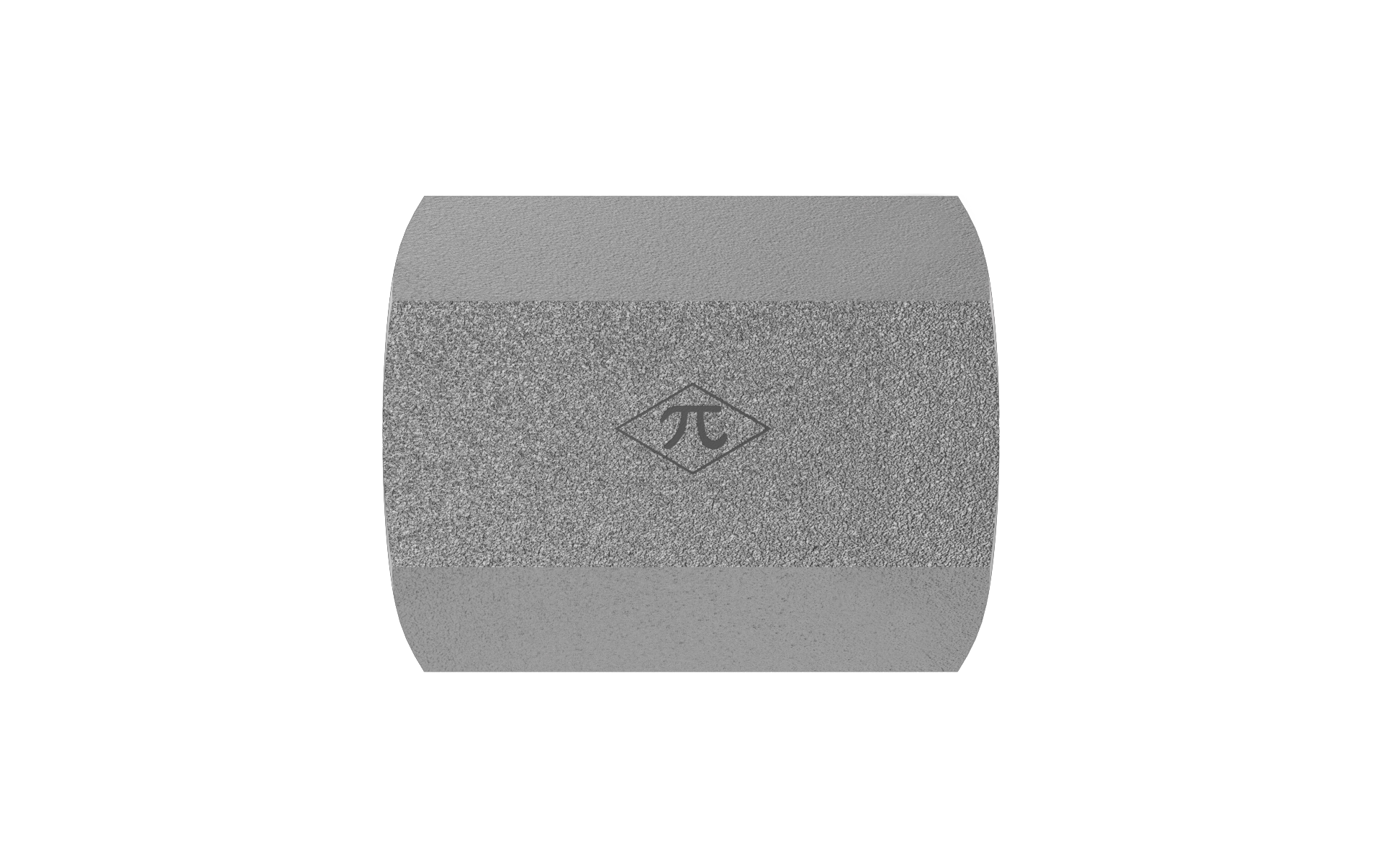

6425-06-06-SS

9/16-18 Female ORB × 9/16-18 Female ORB · Coupling

The HGW 6425-06-06-SS is a coupling joining 9/16-18 female ORB to 9/16-18 female ORB. Made from stainless steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Coupling
$38.06
(0) Write a Review
SKU:
6425-06-06-SS

Product Details

Connection A
TypeFemale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection B
TypeFemale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Size9/16-18
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeCoupling
Weight0.12 lb
Cross References
Parker6 G5HG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
