HGW HYDRAULICS

6425-10-10

7/8-14 Female ORB × 7/8-14 Female ORB · Coupling

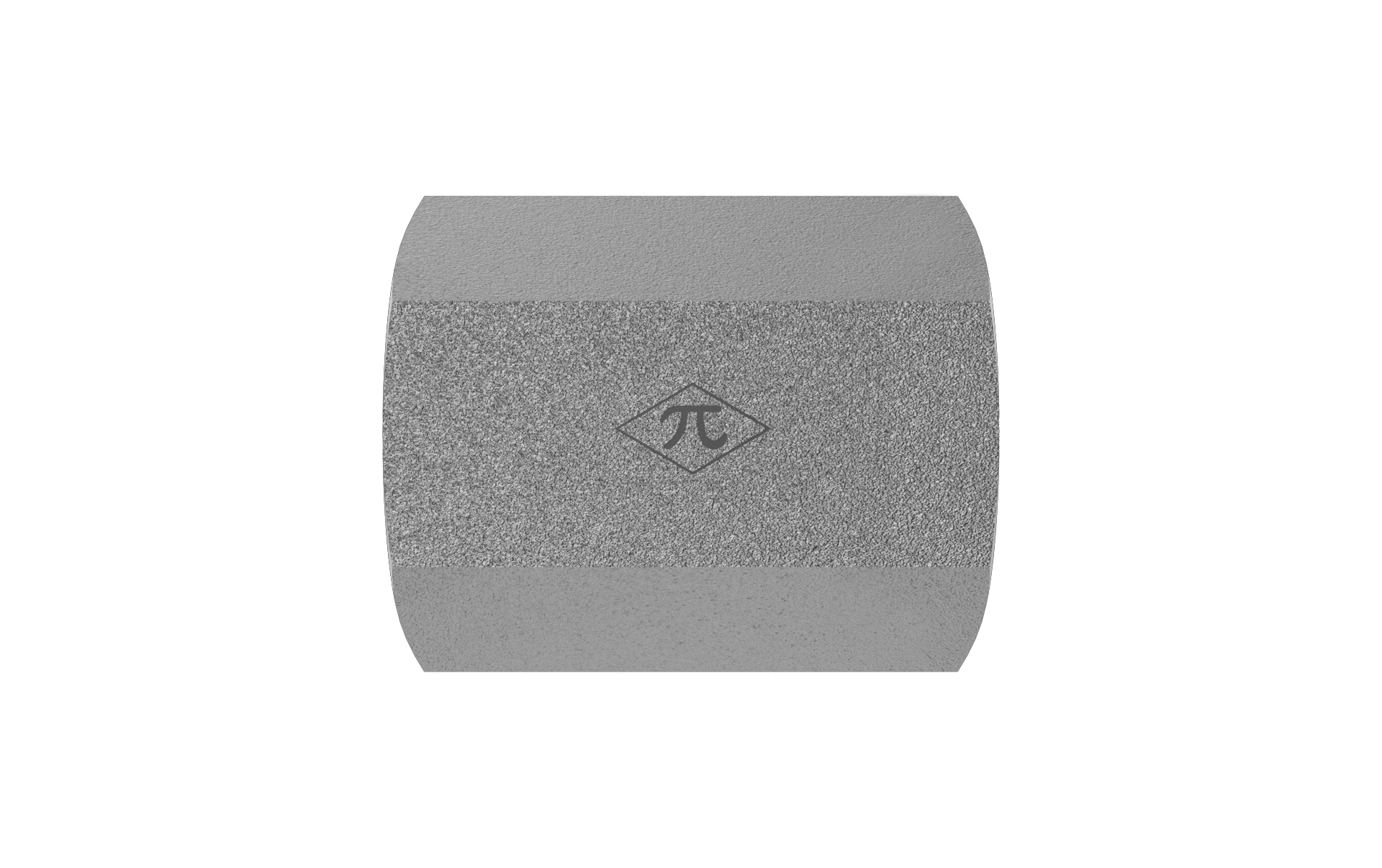

The HGW 6425-10-10 is a coupling joining 7/8-14 female ORB to 7/8-14 female ORB. Made from trivalent-zinc-plated steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Coupling
$5.20
(0) Write a Review
SKU:
6425-10-10

Product Details

Connection A
TypeFemale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection B
TypeFemale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type7/8-14 UNF
Size7/8-14
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeCoupling
Weight0.30 lb
Cross References
Parker10 G5HG5-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
