HGW HYDRAULICS

6425-24-24-SS

1-7/8-12 Female ORB × 1-7/8-12 Female ORB · Coupling

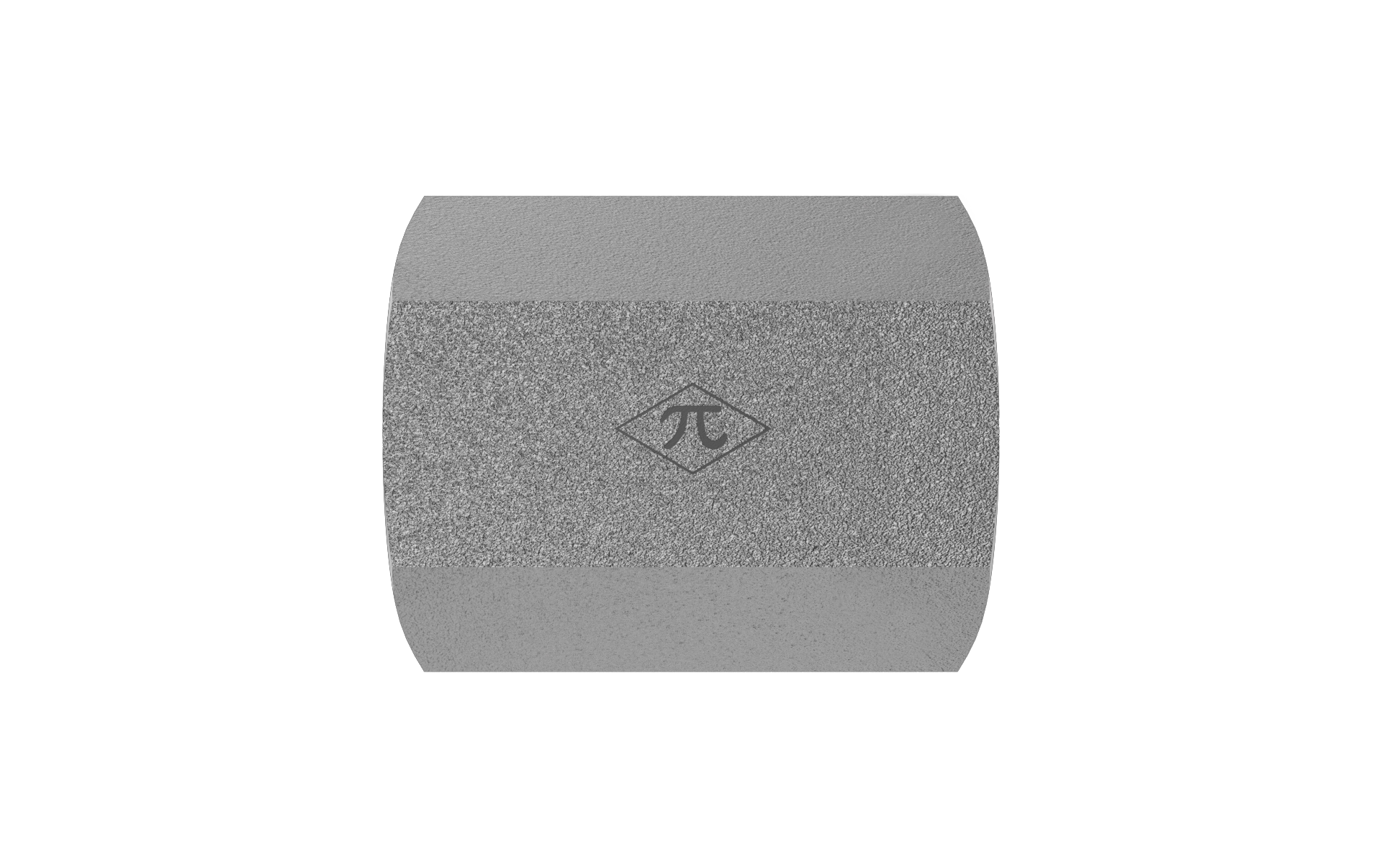

The HGW 6425-24-24-SS is a coupling joining 1-7/8-12 female ORB to 1-7/8-12 female ORB. Made from stainless steel, it uses SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Coupling
$566.51
(0) Write a Review
SKU:
6425-24-24-SS

Product Details

Connection A
TypeFemale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection B
TypeFemale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Size1-7/8-12
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeCoupling
Weight1.21 lb
Cross References
Parker24 G5HG5-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
