HGW HYDRAULICS

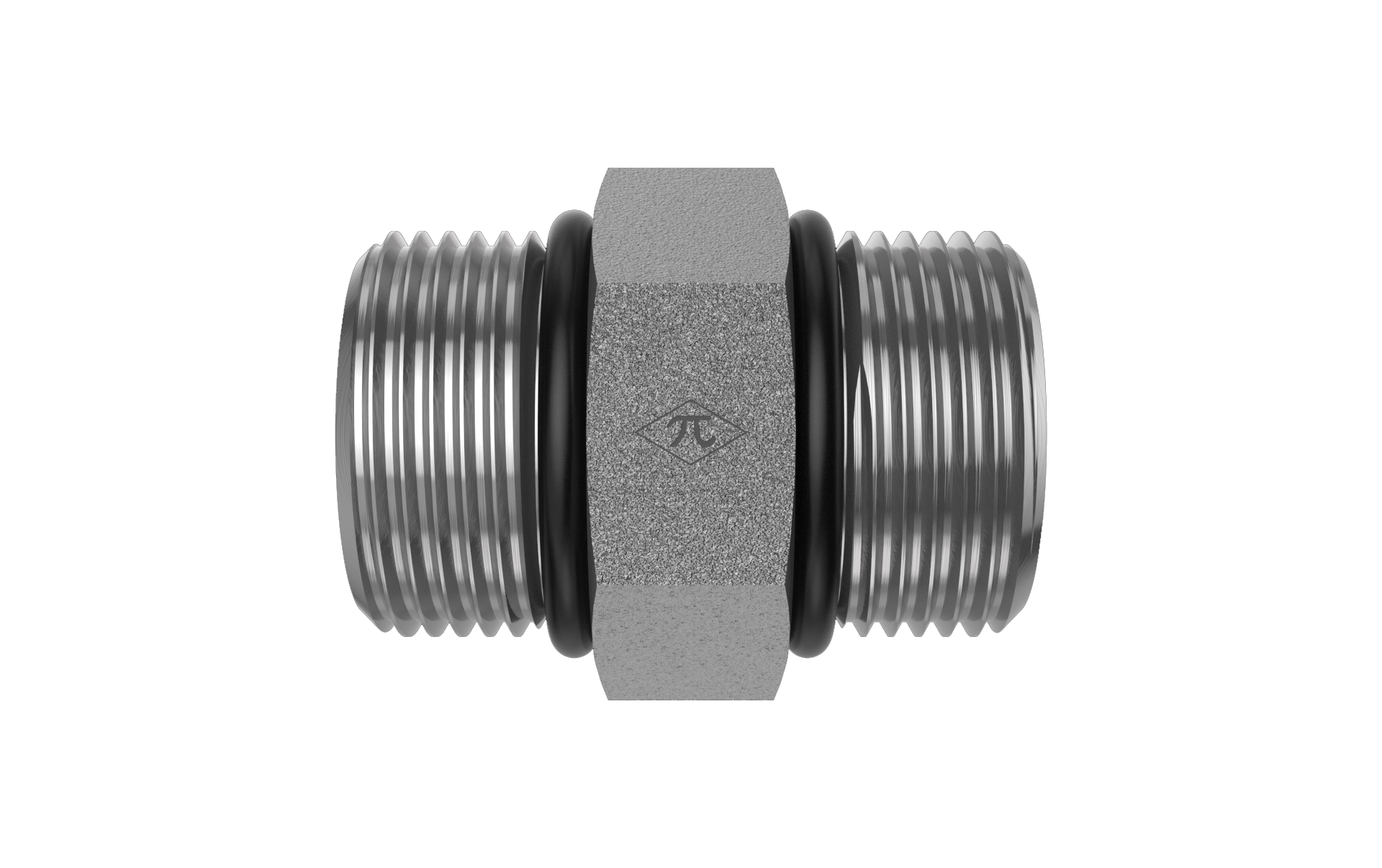

6464-06-06-O

9/16-18 Male ORB x 9/16-18 Male ORB

6464-06-06-O is a 9/16-18 Male ORB x 9/16-18 Male ORB in the 6464-O Series. For connecting two SAE O-Ring Boss ports.

  • Steel
  • Trivalent Zinc
  • Nipple
$8.97
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection B
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeNipple
Weight0.06 lb
Cross References
Aeroquip2229-6-6S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
