HGW HYDRAULICS

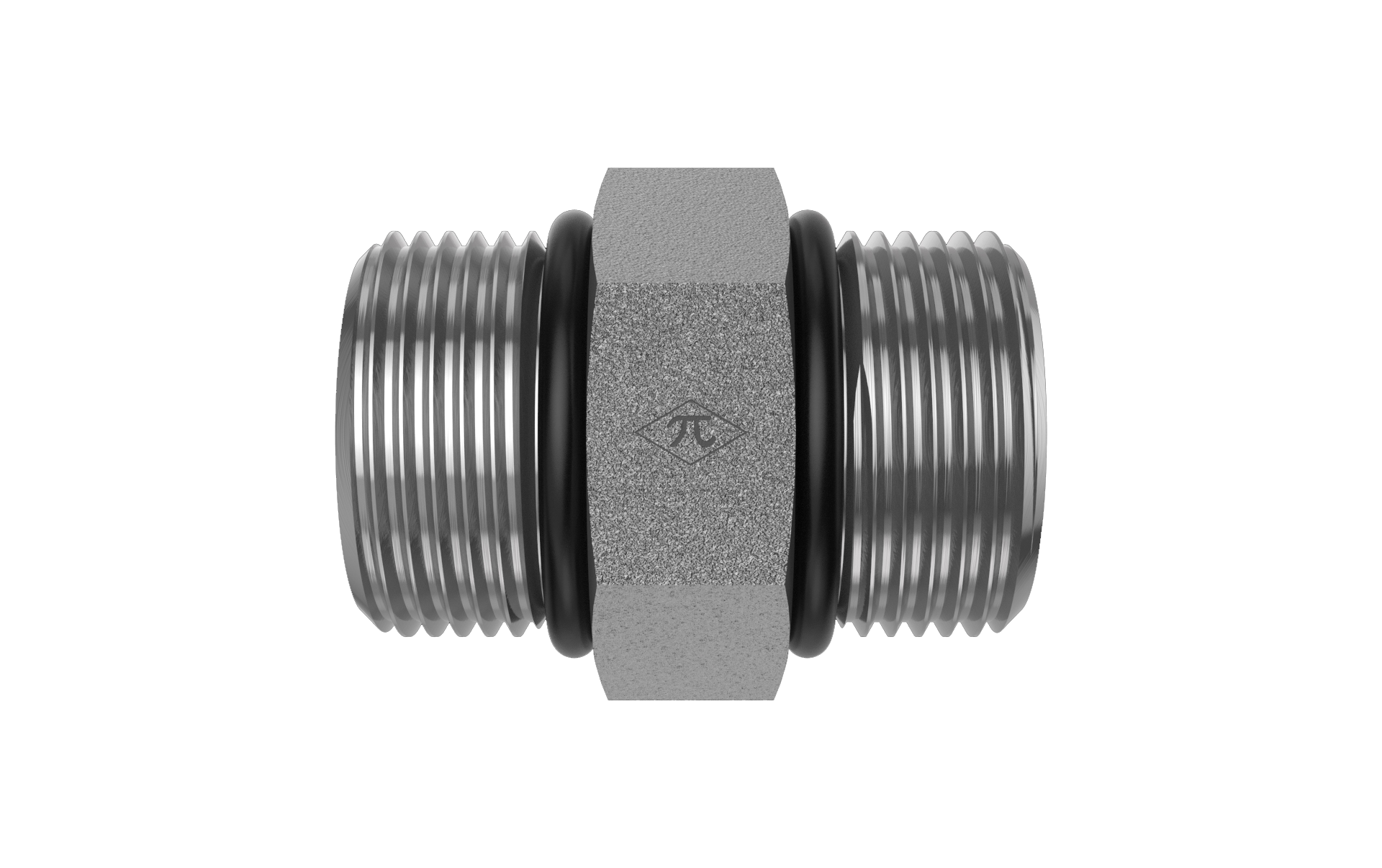

6464-16-12-O

1-5/16-12 Male ORB x 1-1/16-12 Male ORB

6464-16-12-O is a 1-5/16-12 Male ORB x 1-1/16-12 Male ORB in the 6464-O Series. For connecting two SAE O-Ring Boss ports.

  • Steel
  • Trivalent Zinc
  • Nipple
$24.22
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection B
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeNipple
Weight0.39 lb
Cross References
Aeroquip2229-16-12S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
