HGW HYDRAULICS

6502-08-08-FG

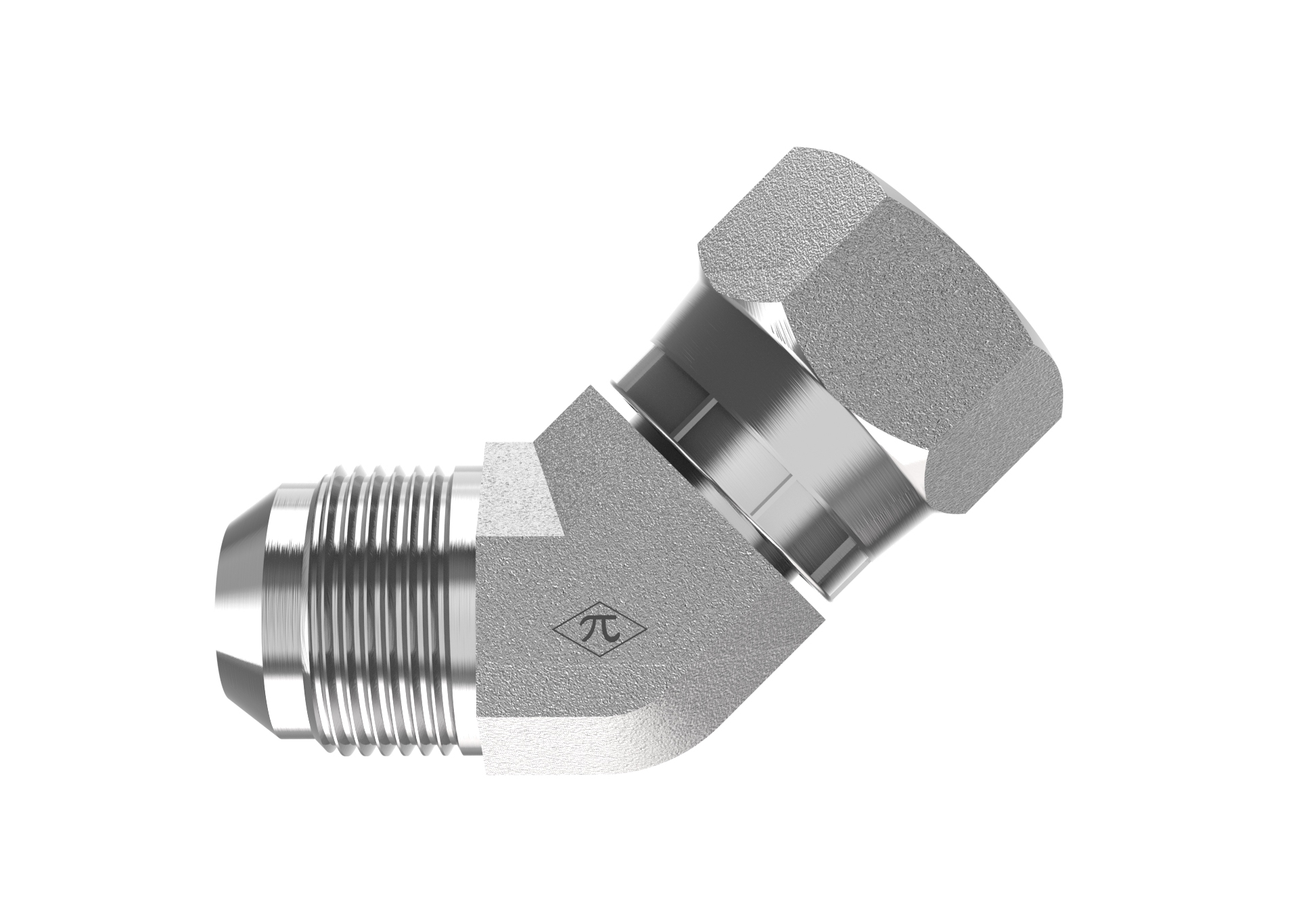

1/2" Male JIC 37° Flare × 1/2" Female JIC 37° Swivel · 45° Swivel Elbow

The HGW 6502-08-08-FG is a 45° swivel elbow joining 1/2" male JIC 37° flare to 1/2" female JIC 37° swivel. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • 45° Swivel Elbow
$4.63
(0) Write a Review
SKU:
6502-08-08-FG

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size1/2"
StandardSAE J514 · Class 2A Thread
Thread3/4-16
Connection B
TypeFemale JIC 37° Swivel
Tube Size1/2"
StandardSAE J514 · Class 2B Thread
Thread3/4-16
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Shape45° Swivel Elbow
Weight0.19 lb
Cross References
Aeroquip2070-8-8S
Parker8 V6X-S
SAE Ref.SAE J514 8-8 070321C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
