HGW HYDRAULICS

6502-08-08-SS

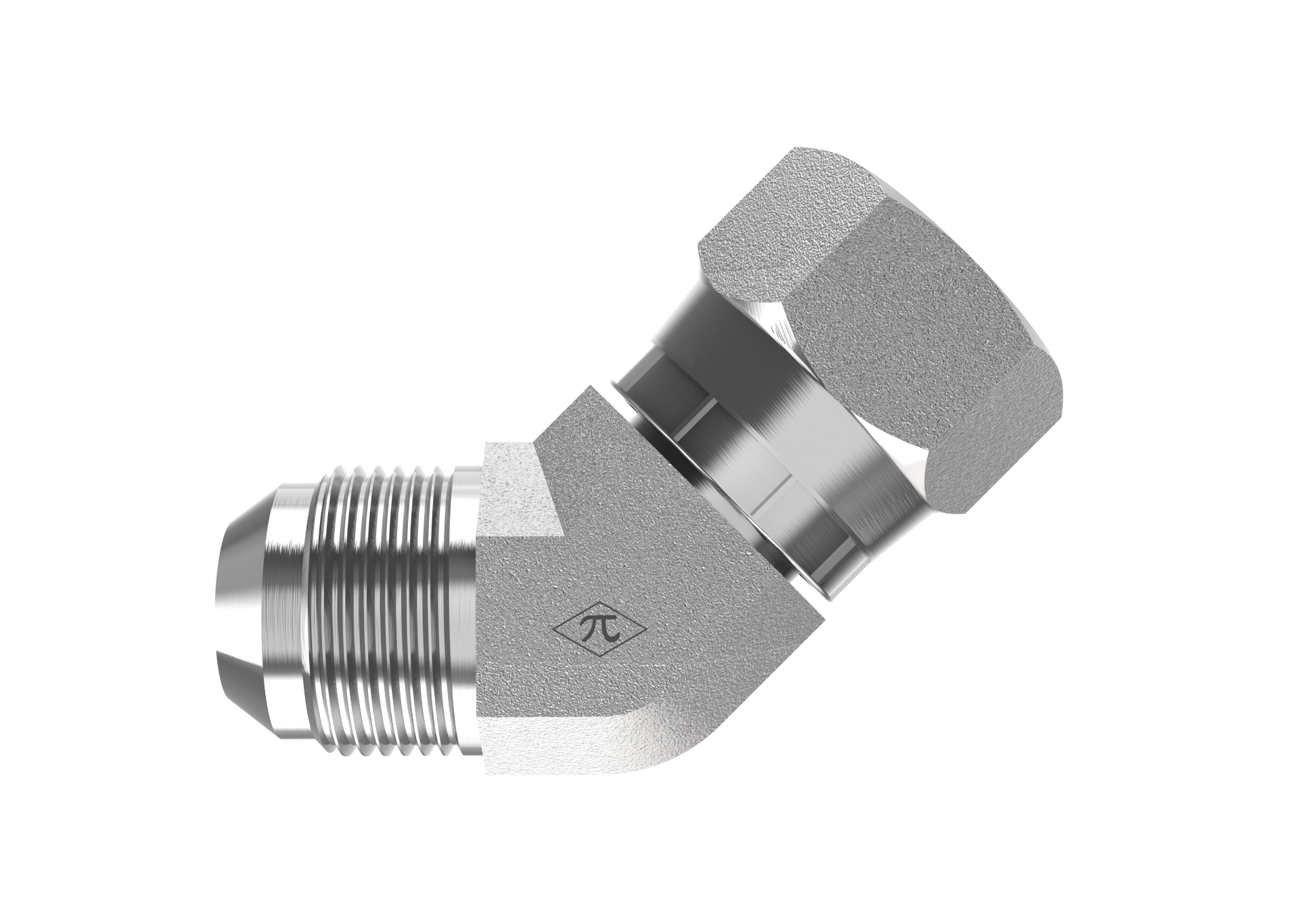

1/2" Male NPTF 30° x 1/2" Female JIC Swivel

6502-08-08-SS is a 1/2" Male NPTF 30° x 1/2" Female JIC Swivel in the 6502-FG Series. For connecting a pipe-threaded port to a 37° flared tube or line at a 45° angle, with the female swivel end allowing the elbow to be tightened without.

  • Stainless Steel
  • Swivel Elbow
  • None
$18.10
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type3/4-16 UNF
Connection B
TypeFemale JIC Swivel
Tube OD1/2"
StandardSAE J514 - Class 2B Thread
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Elbow
Weight0.20 lb
PlatingNone
Cross References
Aeroquip259-2070-8-8
Parker8 V6X-SS
SAE Ref.SAE J514 8-8 070321S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
